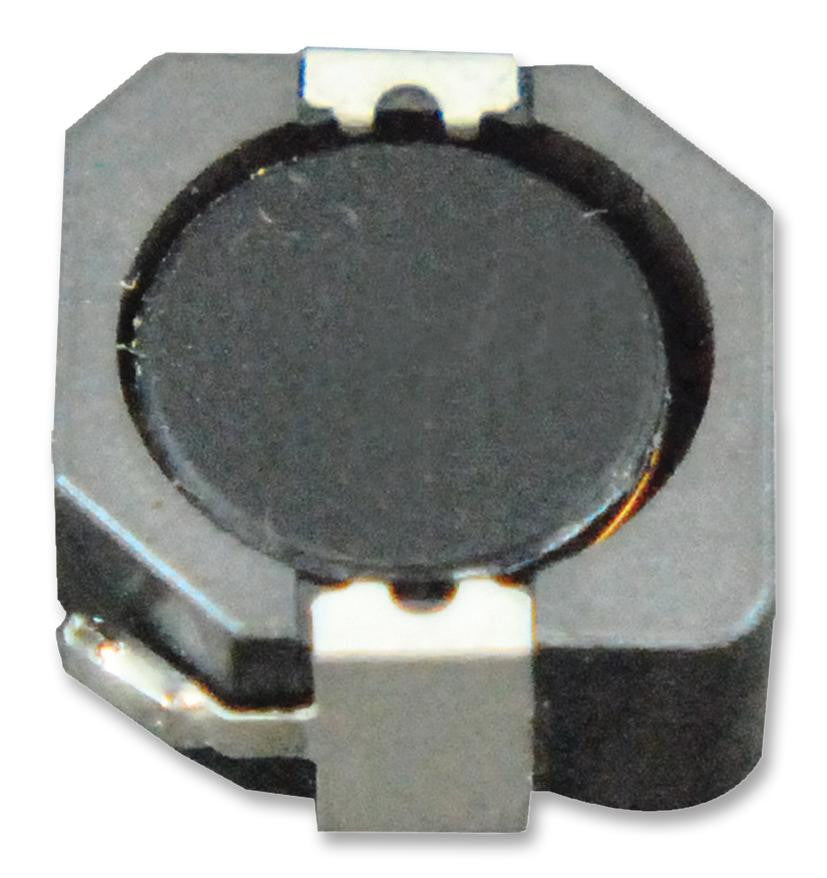

WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm
WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

$49.00
$49.00
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S

Size Guide
Subtotal: $49.00

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

$49.00
WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

WURTH ELEKTRONIK 7447713220 Surface Mount Power Inductor, WE-PD Series, 22 �H, 1.7 A, 2.7 A, Shielded, 0.133 ohm

$49.00
Description
Description
x
The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47�H to 1500�H.
  • EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
  • Magnetic shielding results in low leakage field
  • High storage capacity
  • Low self losses
  • Highest possible current loading
  • Operating temperature range -40�C to 125�C
  • Suitable for reflow soldering process
  • Available in metal and plastic base

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Product details

Inductance Tolerance � 20%
RMS Current (Irms) 1.7A
Saturation Current (Isat) 2.7A
Power Inductor Case 10mm x 10mm x 3mm
Inductance 22�H
Inductor Construction Shielded
Product Range WE-PD Series
DC Resistance Max 0.133ohm
Packaging Cut Tape

Other details

Brand WURTH ELEKTRONIK
Part Number 7447713220
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
Drawing EN Download technical document - datasheet - Tanotis India
Product Change Notice EN Download technical document - datasheet - Tanotis India
