Unitree Go2 Edu Plus Robot with Livox MID-360

$16,942.31
$16,942.31
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S

Size Guide
Subtotal: $16,942.31

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Unitree Go2 Edu Robot with Livox MID-360 - iRed Limited

Unitree Go2 Edu Plus Robot with Livox MID-360

$16,942.31
Unitree Go2 Edu Robot with Livox MID-360 - iRed Limited

Unitree Go2 Edu Plus Robot with Livox MID-360

$16,942.31
Description
Description
x

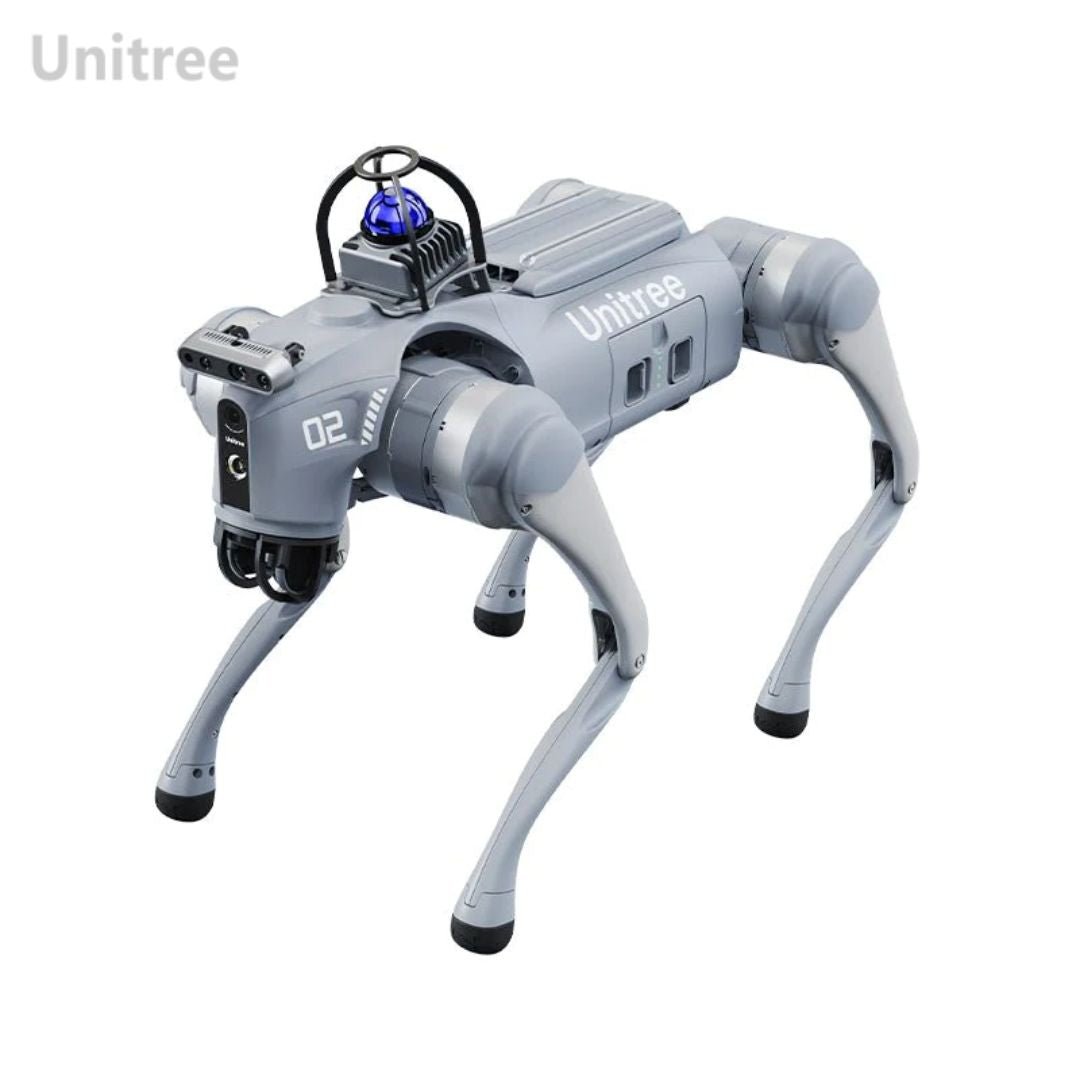

The Unitree Go2 series consists of Unitree's upgraded and improved quadruped robot dogs with 12 aluminium knee joint motors. The Unitree Go2 EDU comes with a super wide-angle 3D LiDAR, foot-end force sensor, secondary development ability, high-computing power module, and a 15000mAh long-life battery and can easily perform various actions and poses. It is also equipped with voice function, ISS 2.0 intelligent side-follow system, joint heat pipe coolers which can effectively decrease temperatures.

The Livox MID-360 is a compact and lightweight LiDAR module for low speed robotics. It can deliver 3D perception in 360 degrees and can be used for SLAM (Simultaneous localisation and mapping) and obstacle avoidance.

The Unitree Go2 Edu is a powerful consumption level robot and the Livox MID-360 enhanced its capabilities, it has various potential applications like inspections, search, rescue, security, delivery, entertainment and education.

Specifications

Go2 Edu



Dimensions:

 (standing) 70x31x40cm
(crouching) 76x31x20cm

Weight:

 (with battery) 15kg

Material:

 Aluminium Alloy + High Strength Engineering Plastic

Payload:

 8kg (MAX ~ 12kg)

Speed:

 0 ~ 3.7m/s (MAX ~ 5m/s)

Max Climb Drop Height:

 16cm

Max Climb Angle:

 40°

Aluminium knee joint motor:

 12 set

Range of Motion:

 body -48~48°, thigh -200°~90°, shank -156°~-48°

Battery

Smart battery:

 Long endurance (15000mAh)

Battery life:

 About 2-4h

Charger:

 Fast Charge (33.6V 9A)

Livox MID-360

Dimensions

 65×65×60 mm

Weight:

 265 g

FOV:

 Horizontal 360°
Vertical -7°~52°

Point Rate:

 200,000 points/s (first return)

Frame Rate:

 10 Hz (typical)

Power:

 6.5 W (average)

Power Supply Voltage Range:

 9 ~ 27 V DC



Key Features

Intra-Joint Circuit (knee):  Available
Joint Heat Pipe Cooler:  Available
Super-Wide-Angle 3D LIDAR:  Available
Wireless Vector Positioning Tracking Module: Available
HD Wide-angle Camera:  Available
Foot-End Force Sensor:  Available
Basic Action:  Available
Upgraded Intelligent OTA:  Available
RTT 2.0 Image Transmission:  Available
Graphical Programme:  Available
Front Lamp:  Available
Voice Function:  Available
ISS 2.0 Intelligent Side-Follow System:  Available
Intelligent Detection and Avoidance:  Available
Charging Pile Compatibility:  Available
Secondary Development:  Available
Manual controller:  Available
