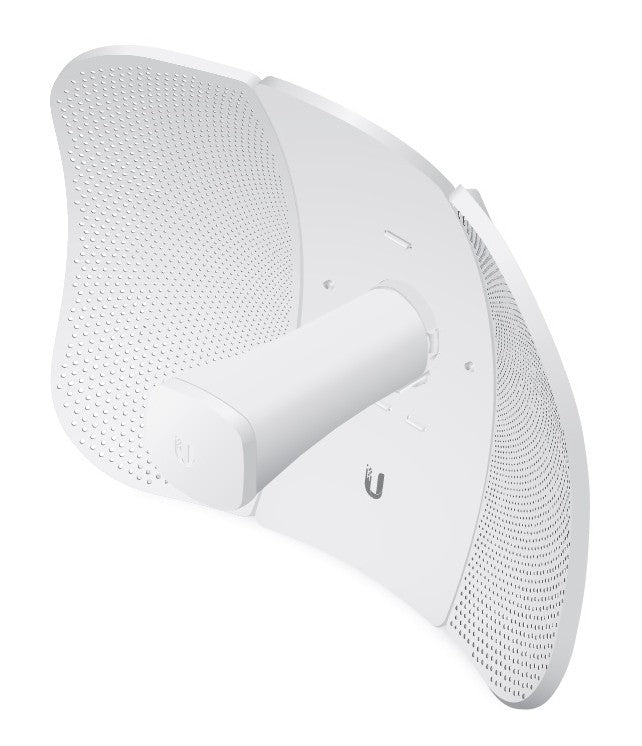

Ubiquiti 5GHz airMAX AC LiteBeam Gen2 Radio

Ubiquiti 5GHz airMAX AC LiteBeam Gen2 Radio - LBE-5AC-GEN2

The airMAX AC LiteBeam Gen2 Radio - LBE-5AC-GEN2 is a lightweight, low-cost solution with full adjustment and flexibility. One can quickly assembly it with a seamless installation. Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.

General Benefits

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with
other RF signals of the same or similar frequency.

Innovative Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the
LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Powerful Wireless Features

Access Point PtMP airMAX Mixed Mode
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
PtP: 10/20/30/40/50/60/80 MHz
PtMP: 10/20/30/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security

Usability Enhancements

airMagic Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer

Accessing airOS via Wi-Fi

The UNMS app provides instant access to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play™ (Android). UNMS allows you to set up, configure, and manage the LiteBeam 5AC Gen 2. It offers the following options once you're connected or logged in to the device:

Status - Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2.
Configuration - Change or update the existing configuration of the LiteBeam 5AC Gen 2.
Tools - Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2.
Actions - Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen 2.

Are you interested in knowing more about this product? Please refer to the product datasheet for detailed tech specs and other particulars. Visit this link for more information.
