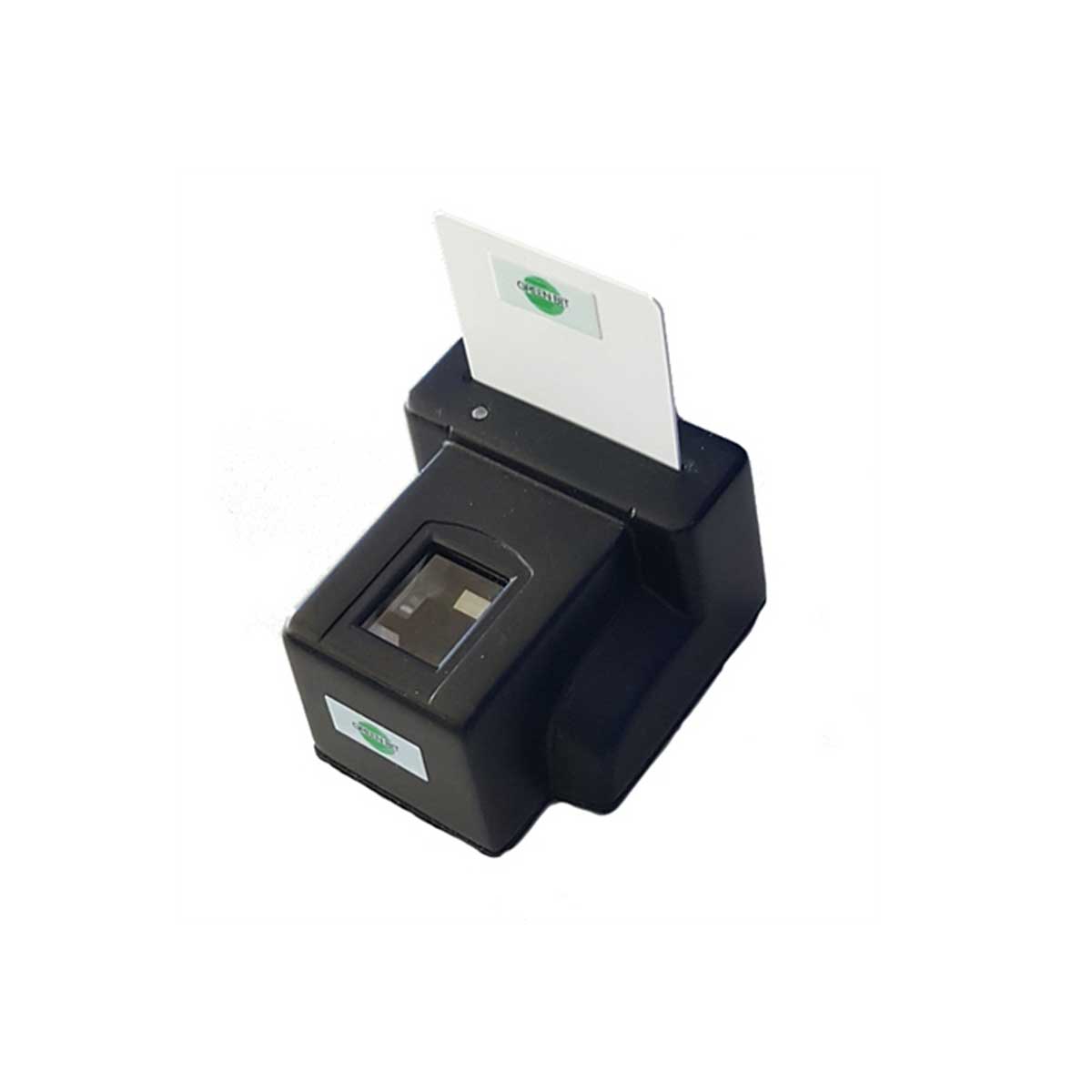

Thales DactyID20_SC Fingerprint Reader

Thales DactyID20_SC Fingerprint Reader

$75.60
Thales DactyID20_SC Fingerprint Reader

Thales DactyID20_SC Fingerprint Reader

$75.60
Description
Description
x

NON-RETURNABLE/NON-REFUNDABLE

This product is EOL. Quantities are very limited.

DactyID20_SC with smart card reader is a compact single-finger livescan FBI/PIV certified offering a superior built-in fake finger detection system. This makes the DactyID20_SC the best choice especially for unattended applications like kiosks, pc/network-login, time and attendance and many others.

PLEASE NOTE, INTERNATIONAL DESTINATIONS REQUIRE AN EXPORT LICENSE FROM THE STATE DEPARTMENT. THE APPLICATION PROCESS CAN LAST UP TO 45 DAYS.

SDK Features

  • AUTOMATIC ACQUISITION START AND STOP: sensing of finger placement and automatic acquisition of the image with the highest quality. Quality thresholds for images can be set through the Multiscan SDK.
  • ELIMINATION OF LATENT PRINTS: elimination of latent prints originating from recent scans.
  • ELIMINATION OF DIRT: image is always crisp, clear and well contrasted.
  • AUTOMATIC FORMAT CLIPPING: generation of any required image size according to application requirements.
  • AUTOMATIC IMAGE ROTATION: correct rotation of a fingerprint image in accordance with application demands.
Tech Specs
ACTIVE SCANNING WINDOW
0,8" x 0,7"- Single flat finger
IMAGE RESOLUTION & QUALITY
FBI/PIV certified at 500 dpi, 8-bit
INTERFACE
2.0 (Power and Data)
QUALITY AND FORMATS
ANSI/NIST-ITL 1-2007/2011, ISO/IEC FCD 19794-4, ANSI/NIST-ITL 1-2000, ANSI/NIST-ITL 1-2000 Interpol Implementation
SUPPORTED OPERATING SYSTEMS
Microsoft Windows up to Win 10 in 32-bit and 64-bit configuration, Linux Ubuntu and Fedora distributions in 32-bit and 64-bit configuration, Android
FAKE FINGER DETECTION
HW based to guarantee highest efficiency
TEMPERATURE
Storage: from -20°C to +60°C - Operating: from 0°C to +50°C
HUMIDITY
From 10 to 90% non-condensing
WEIGHT
175 gr.
DIMENSIONS
50 x 68 x 43 mm
CERTIFICATIONS
CE, FCC, RoHS
IP RATING
IP54
OPTIONS
DactyMatch SW
STANDARDS
ISO 7816 & EMV 2000 level 1
PROTOCOLS
T=0, T=1, 2-wire: SLE 4432/42 (S=10), 3-wire: SLE4418/28(S=9), IC (S=8)
SMARTCARD DETECTION
Movement detection with auto power-off. Automatic detection of smart card type. Short circuit and thermal protection
CARD SIZE
ID-1 (full-size)
INTERFACE SPEED
420 kbps (when supported by card)
CLOCK FREQUENCY
Fixed at 4.8Mhz
SUPPORTED CARD TYPES
5v, 3V and 1.8V Smart Cards, ISO 7816 Class A,B and C
SUPPORTED CARD TYPES
5v, 3V and 1.8V Smart Cards, ISO 7816 Class A,B and C
POWER TO SMART CARD
60mA
STATUS INDICATOR
color LED
COMPLIANCE CERTIFICATION
Microsoft WHQL EMV 2000 LEVEL 1
