Description
xSword Series – Premium Architectural COB Spotlights
The Sword Series is a cutting-edge deep-antiglare COB spotlight system engineered for modern architectural spaces. Featuring 360° rotation, internal tilt, front-openable ceiling-secure design, advanced heat management, and highly efficient 15°–55° optics, it delivers precise and long-lasting lighting performance.
- Deep Antiglare • 360° Rotatable • Internal Tilt
- Front-Openable Design (Tool-less, Ceiling-Secure)
- Highly Efficient Optics – 15° / 24° / 36° / 55°
- Advanced CNC Heat Management • Long-Life Spring Mechanism
- Modular System – Round & Square • Trim & Trimless • Single & Double
- Premium Reflectors • Honeycomb, Elliptical Lens, Oval Cut, Wall-Wash Options

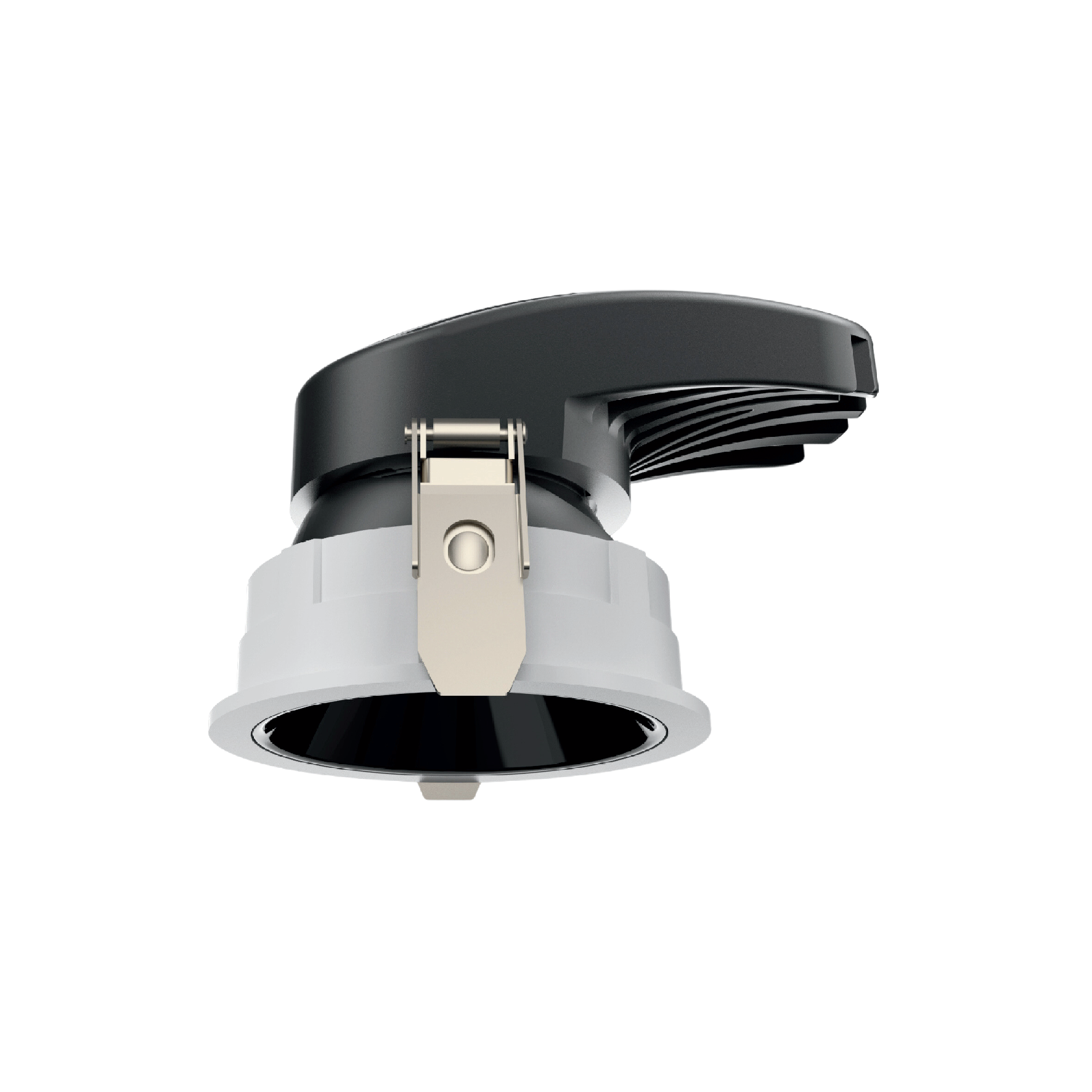

Sword Pro Curve – Low-Height Deep Anti-Glare COB Downlight (7W–12W)
The Sword Pro Curve Series is a specialised low-height deep anti-glare COB spotlight designed for projects where ceiling depth is limited but premium visual comfort is still required. Its unique curved optical reflector and shallow body design create a softer beam transition, smooth light fall-off and reduced visual harshness compared to standard downlights. Ideal for luxury residences, corridors, boutiques, galleries and hospitality spaces with compact ceiling voids. Available in Round & Square, Single & Double formats, the Sword Pro Curve Series supports all reflector colours, beam angles, LED ranges, dimming upgrades and trim/trimless mounting options.
SWORD PRO CURVE – TECHNICAL DETAILS
1. Wattage-Wise Dimensions (Curve Round – Low Height)
| Wattage | Size (S) / Diameter | Cutout | Height (H) |
|---|---|---|---|
| 7W | 65 mm | 55 mm | 85 mm |
| 12W | 85 mm | 75 mm | 95 mm |
2. Wattage-Wise Dimensions (Curve Square – Low Height)
| Wattage | Size (S) | Cutout | Height (H) |
|---|---|---|---|
| 7W | 65 mm | 55 mm | 85 mm |
| 12W | 85 mm | 75 mm | 95 mm |
3. Dimensions – Curve Double (Round & Square)
| Model | Size (S) | Cutout | Height (H) |
|---|---|---|---|
| 2×7W | 65 × 115 mm | 105 × 55 mm | 85 mm |
| 2×12W | 85 × 155 mm | 145 × 78 mm | 95 mm |
4. Beam Angle Options
| Beam Angle | Application Use |
|---|---|
| 15° | Narrow sharp focus (artwork / retail highlights) |
| 24° | Accent lighting |
| 36° | General lighting / ceiling spotlights |
| 55° | Wide flood / ambient |
All beam angles available across all wattages.
5. Reflector Colour Options (8 Colours)
| Reflector Finish | Description |
|---|---|
| Gold | Warm premium finish |
| Chrome | Bright reflective finish |
| Nickel | Soft metallic |
| Black | Low glare |
| White | Clean & minimal |
| Rose Gold | Luxury finish |
| Silver | Neutral reflector |
| Fog Silver | Matte metallic |
6. Body / Face Ring Colour Options
- Matte White
- Matte Black
7. Accessory Options
| Accessory | Function |
|---|---|
| Honeycomb | Softens output & reduces glare |
| Oval Cut | Elongated wall-wash focus |
| Pin-Hole Ring | Ultra-tight anti-glare spot |
| Wall-Wash / Elliptical Lenses | One-side / two-side or asymmetric beam |
| Trimless Kit | Seamless zero-edge ceiling finish |
8. LED Ranges + Warranty
| LED Range | Warranty | Category |
|---|---|---|
| Ultra | 5 Years | Highest / Premium |
| Performance | 3 Years | High |
| Standard | 2 Years | Standard |
| Essential | 2 Years | Budget |
9. Add-On Options (Extra Charges)
| Add-On | Extra Charge |
|---|---|
| Trimless (Round – 7W/12W) | +₹150 |
| Trimless (Square – All Wattages) | ₹0 |
| Honeycomb Filter | +₹50 |
| Oval / Round Cut | +₹150 |
| Special Lenses | +₹50 |
10. Dimming Options
| Dimming Type | Availability |
|---|---|
| Non-Dimmable (Standard) | Default option |
| Triac Dimming | On request |
| 0–10V Dimming | On request |
| DALI Dimming | On request |
| Bluetooth / Smart Dimming | Project-based special quote |
For dimming upgrades or project quantities, please contact us for a customised quote.
📘 Download Full Catalogue And Price List (PDF)
LED Ranges & Upgrade Options
We offer multiple LED performance ranges designed for different budgets, applications and lighting requirements. Every fixture can be upgraded with advanced Dimming, Tunable White, DALI, RF/BLE Smart Controls for complete lighting flexibility.
- Essential / Standard / Performance / Ultra Ranges – from economical to premium specs
- High-lumen LEDs up to 150 lm/W for maximum brightness
- 90+ CRI options for perfect colour accuracy
- DALI DT6 (Dimmable) & DALI DT8 (Tunable) upgrades
- Smart RF & BLE Wireless Drivers – dimming & tunable options
- Optional 3–5 years warranty depending on upgrade type
Want to understand each range and upgrade in detail?
Learn More About All Ranges & Upgrades →
