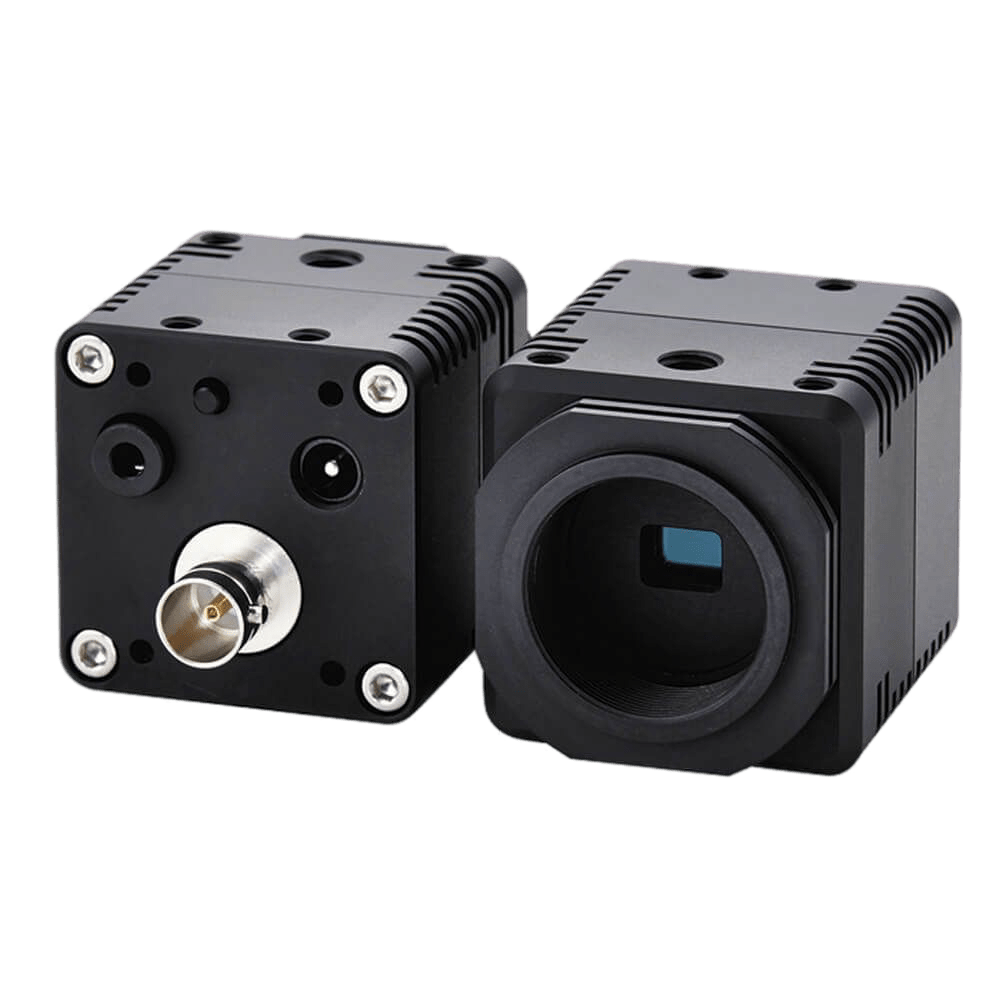

Omron STC-HD213SDI-CS | 1080p60 3G-SDI Camera | IMX291 CS Mount

The Omron STC-HD213SDI-CS is designed for applications where low latency and reliable video transmission are critical. Unlike USB or GigE cameras that introduce buffering delays, this camera uses a 3G-SDI interface, delivering uncompressed, real-time video directly to processing systems.

At the core is the Sony IMX291 CMOS sensor, known for its excellent low-light performance and high sensitivity. Combined with 1080p60 output, this makes the camera well-suited for dynamic environments such as robotics, UAV navigation, and live tracking systems.

The CS mount design allows flexibility in lens selection, making it easy to adapt the camera to different fields of view and working distances. Its compact 40mm form factor also enables integration into space-constrained embedded systems.

For engineers building real-time vision pipelines, the STC-HD213SDI-CS provides a deterministic, low-latency alternative to traditional machine vision interfaces.

Key Features:

• Sony IMX291 CMOS sensor (1/2.8")
• 1920 × 1080 @ 60 fps
• 3G-SDI output (4:2:2, 10-bit)
• Ultra-low latency video transmission
• Rolling shutter architecture
• CS mount lens compatibility
• Wide exposure range (29.6 µs to 2.12 s)
• Analog gain up to 45 dB
• Compact 40 × 40 mm form factor
• IR-cut filter with OPLF
• BNC video output for secure connections
• External power (9–15 VDC)

Applications:

• Robotics vision systems
• UAV / drone imaging
• Real-time surveillance
• Broadcast and inspection systems
• Industrial automation
• Low-latency AI vision pipelines
