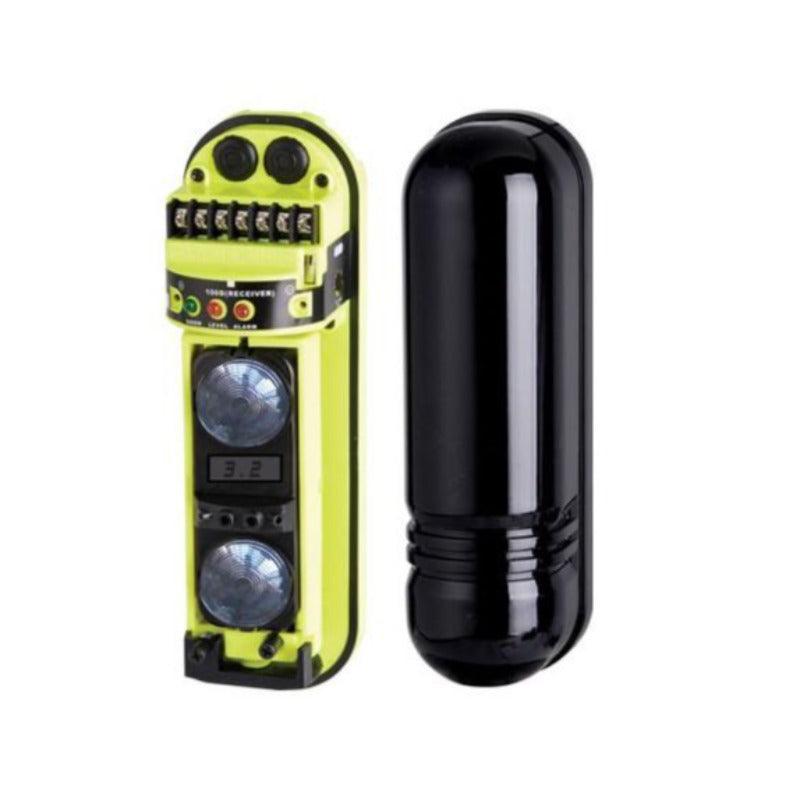

Protect your perimeter with the Securi-Prod 30m Dual IR Wired Beams.

Each set contains two dual Infrared digital pulse beams that have an outdoor detection distance of 30 meters. The beams are each fitted with a fresnel lens for defined and precise infrared beam transmission and use fuzzy logic for external interference rejection. Automatic Gain Control (AGC) Circuit - continually monitors for gradual changes in the signal’s strength caused by changing weather conditions.

The beams are crafted from ABS resin with an IP66 rating to ensure optimal operation in most environments.

In addition, they have LED Indicators for quick installation and a built-in LCD Volt-meter for quick alignment.


FEATURES OF THE DUAL INFRARED PERIMETER BEAMS:

  • Outdoor detection distance of 30m
  • Adjustable detection speed (Between 50 - 700msec)
  • Requires both beams to be interrupted simultaneously
  • Output relay: NO and NC
  • Built-in LCD volt-meter for quick alignment
  • LED indicators for quick installation and walk-test
  • Tamper output
  • Cable entry protection –rubber grommets
  • Pole/wall mount kit included



SPECIFICATIONS OF THE DUAL INFRARED PERIMETER BEAMS:

Installation method Outdoor – 30m
Indoor – 90m
Type Wired
Material ABS Resin
Number of Beams 2
Detection method 2 Simultaneously
Optical Source Infrared digital pulse beam
Response speed 50 – 700msec
Operating Voltage: 13.8 Vdc
Alarm relay output NO or NC contact rating
Alarm relay rating AC/DC30V 0.5AMax
Power Consumption 40mA max
Optical axis adjustment (H) 180° (±90°)
Optical axis adjustment (V) 20° (±10°)
Operating Temperature -25℃~55℃
Humidity (RH) 5% - 95%
IP Rating IP66
Product Dimensions 80(H) mm x 76(W) mm x 235(L) mm each
Product Weight 815g per set
Packaging Dimensions 90(H) mm x 175(W) mm x 240(L) mm
Mass of unit packed 1100g
Warranty 12 months limited manufacturer’s warranty



WHAT’S IN THE BOX:

1 x Securi-Prod 30m Dual IR Wired Beams
