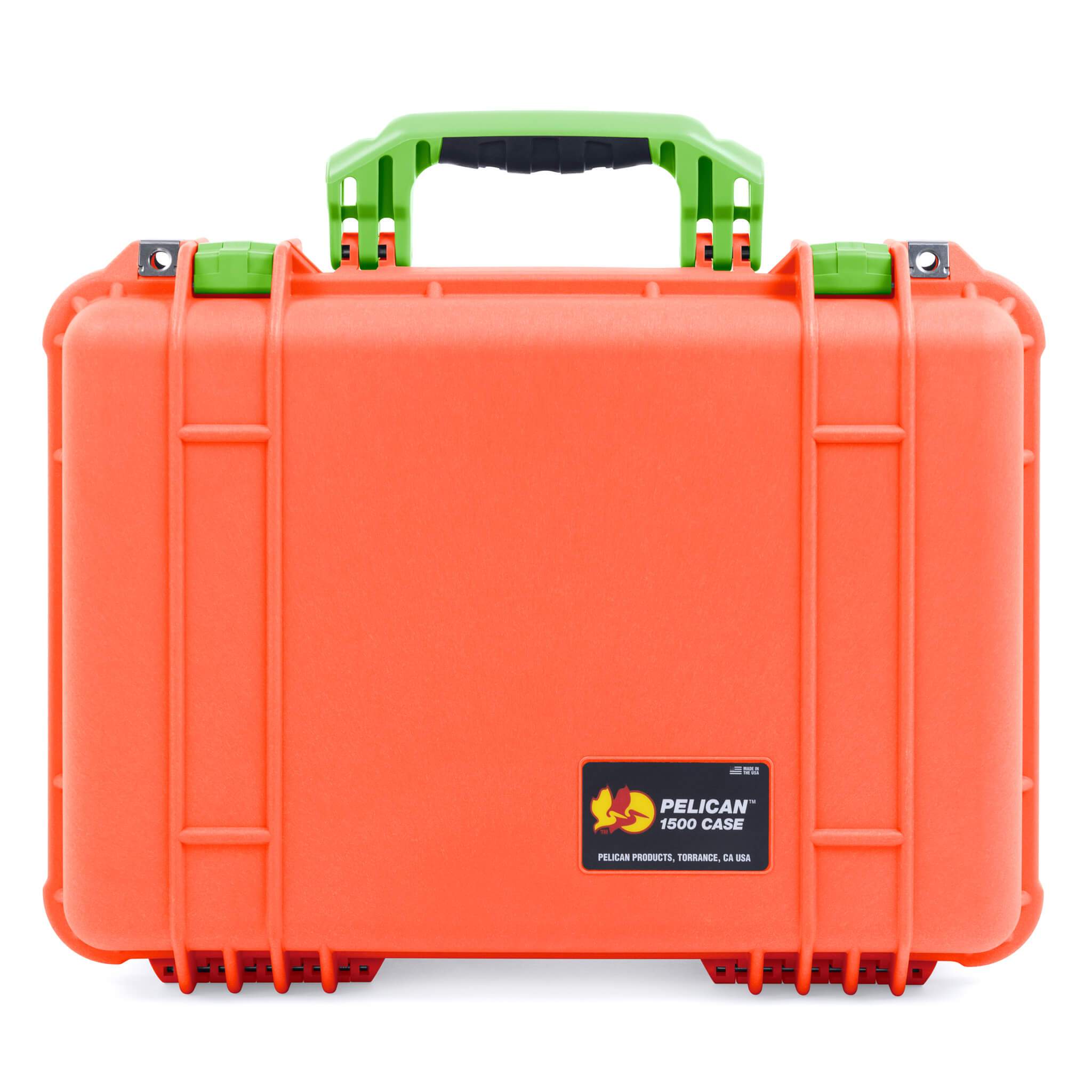

Pelican 1500 Case - Orange & Lime Green

Pelican™ 1500 Hard Case

• Interior: 16.75" x 11.18" x 6.12"
• Weight: 7.13 lbs (Empty)
• Waterproof Certification: IP67
• Series: Protector Case
• Case Color: Orange
• Handle & Latches Color: Lime Green

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Two easy to open double-throw latches
  • Stainless steel hinge pins and padlock covers
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.81" (4.6 cm)
  • Bottom Depth: 4.31" (10.9 cm)
  • Total Depth: 6.12" (15.5 cm)
  • Interior (L X W X D): 16.75" x 11.18" x 6.12" (42.5 x 28.4 x 15.5 cm)
  • Exterior (L X W X D): 18.50" x 14.06" x 6.93" (47 x 35.7 x 17.6 cm)
  • Weight (Empty): 7.13 lbs (3.2 kg)
• • Internal Volume: 0.66 ft³
  • Buoyancy: 50.00 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• CVPKG Mesh Lid Organizer

  • Four mesh zipper pockets, plastic backing
  • Installs with 5 included screws



  Computer Lid Pouch

  • Fits laptop computers up to 15" x 11"
  • Installs with included Velcro strips



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1500, two (2) divider inserts 18" in length, & one (1) divider insert 15" in length
  • One cutter tool, 20 pins, & 20 red pull tabs
  • Polyurethane bottom foam



  Gray Microfiber Padded Dividers

  • 3.5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 10" long, 1/2" thick hinged microfiber dividers
  • Six (6) 4.5" long, 1/2" thick microfiber dividers
  • Three (3) 2.5" long, 1/2" thick microfiber dividers
  • Three (3) 6" long, elastic Velcro straps



  Yellow Microfiber Padded Dividers

  • 3.5" deep black & yellow adjustable microfiber dividers with 1/2" thick perimeter padding & 1/2" thick bottom padding
  • Two (2) 10" long, 1/2" thick hinged microfiber dividers
  • Six (6) 4.5" long, 1/2" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps

• Download CAD Drawings*

  • Pelican 1500 Lid Dimensional Drawing
  • Pelican 1500 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
