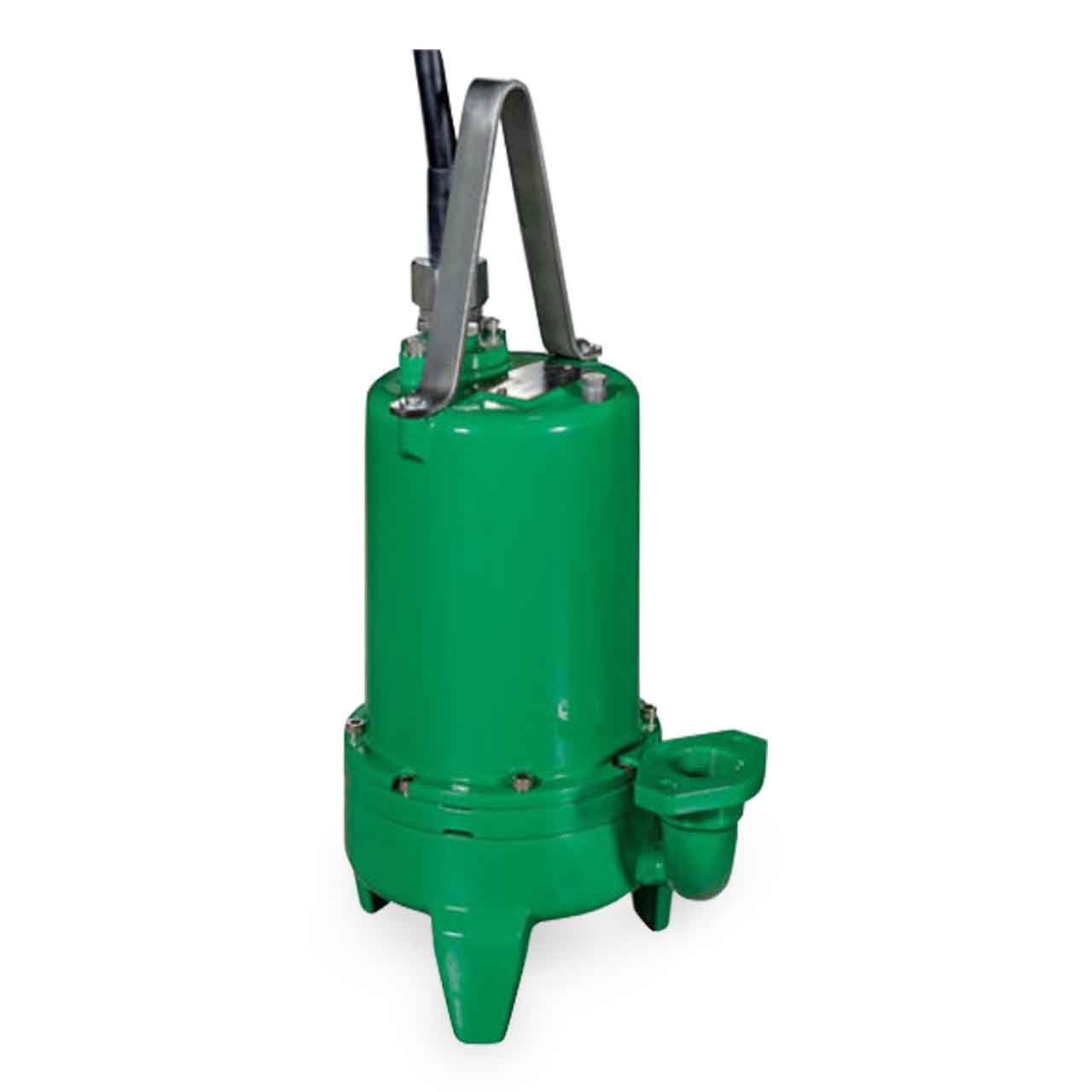

Myers VS20-03-20 Grinder Pump 2.0 HP 200V 3PH 20' Standard Cord

Myers Model VS20 Grinder Pump Description

The Myers VS20 Series is the newly innovative 2 HP Submersible Grinder Pump is designed specifically for use in today's complex wastewater environment. It features an advanced cutting technology and semi-open impeller design to effectively macerate typical domestic sewage solids into a fine slurry.

Myers Model VS20 Grinder Pump Superior Features

• Cable Entry System:
• Optional Quick Disconnect Cord Available for Ease of Maintenance.
• Cable Jacket Sealed by Compression Fitting; Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress.
• Replace Power Cord without Disturbing Motor for Ease of Maintenance.
• Oil-Filled Motor:
• Maximizes Heat Dissipation; Provides Constant Bearing Lubrication for Long Life.
• High Torque Start/Run Capacitor for Single or Three-Phase Motors, Assured Starting Under Heavy Loads.
• Heavy 416 SST Shaft:
• Corrosion Resistant, Reduces Shaft Deflection for Long Life.
• Lower Double Row Ball Bearings:
• Absorb Both Axial and Radial Loads for Increased Durability.
• Double Mechanical Shaft Seals:
• In Oil-Filled Seal Chamber for Continuous Lubrication, Superior Motor Protection.
• Seal Leak Probe:
• Located in Seal Chamber Instead of Motor Area for Truly Early Warning of Water Leaks. Allows Corrective Action before Costly Motor or Bearing Failure Occurs.
• Activates Warning Light in Control Panel.
• SST Semi-Open Impeller:
• Provides Improved Performance, Resists Clogging.
• Pump-Out Vanes Help Keep Trash from Sea, Reduces Pressure at Seal Face for Longer Life.
• Axial Cutter System:
• Constructed of 440 SST Hardened to 57-60Rc for Long Life.
• Easily Replaceable without Dismantling Pump.
• Volute Case:
• Cast Iron 1¼" NPT Vertical Flanged Discharge.
