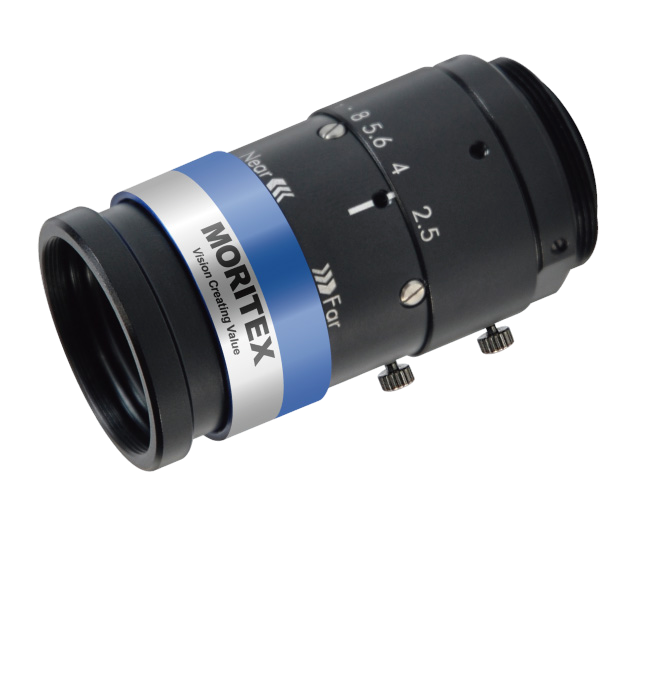

Moritex ML-M3520UR 35mm 2/3" 5MP Machine Vision Lens

35mm 2/3" 5MP Machine Vision Lens

The Moritex ML-M3520UR is a high-resolution 35mm fixed focal length C-mount lens designed for 2/3" 5MP sensors with 2.2μm pixel size. Delivering up to 200 lp/mm resolving power, this lens is ideal for machine vision systems requiring a narrow field of view, longer working distances, and precise image detail in demanding industrial environments.

Key Features

• 35mm focal length for narrow field of view and high magnification
• Designed for 2/3" sensors
• Supports 5MP resolution (2.2μm pixel size)
• 200 lp/mm resolving power
• Broadband Vis/NIR AR coating (400–1000nm)
• Rugged, vibration-resistant construction
• Locking focus and iris controls
• Compact design for system integration

Typical Applications

• High-precision inspection and metrology
• Semiconductor and PCB inspection
• Robotics and automation systems
• Dimensional measurement
• Surface defect detection
• Inspection tasks requiring longer working distances

Technical Specifications

Manufacturer: Moritex
Model: ML-M3520UR
Focal Length: 35mm
Max Aperture: F2.0
Sensor Format: 2/3" (11mm image circle)
Resolution: 5MP / 200 lp/mm
Mount: C-Mount (17.526mm flange back)
Minimum Object Distance: 200mm
Filter Thread: M25.5 × 0.5
Dimensions: 29.5 × 39 mm
Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for 2/3" 5MP machine vision sensors with 2.2μm pixel size. Ideal for applications that require tighter framing and longer working distances than 25mm lenses.

What’s Included & Ordering Notes

• Moritex ML-M3520UR Lens
• Protective caps

These lenses are typically built to order. Lead times vary depending on availability. Contact us for current lead time and application support.
