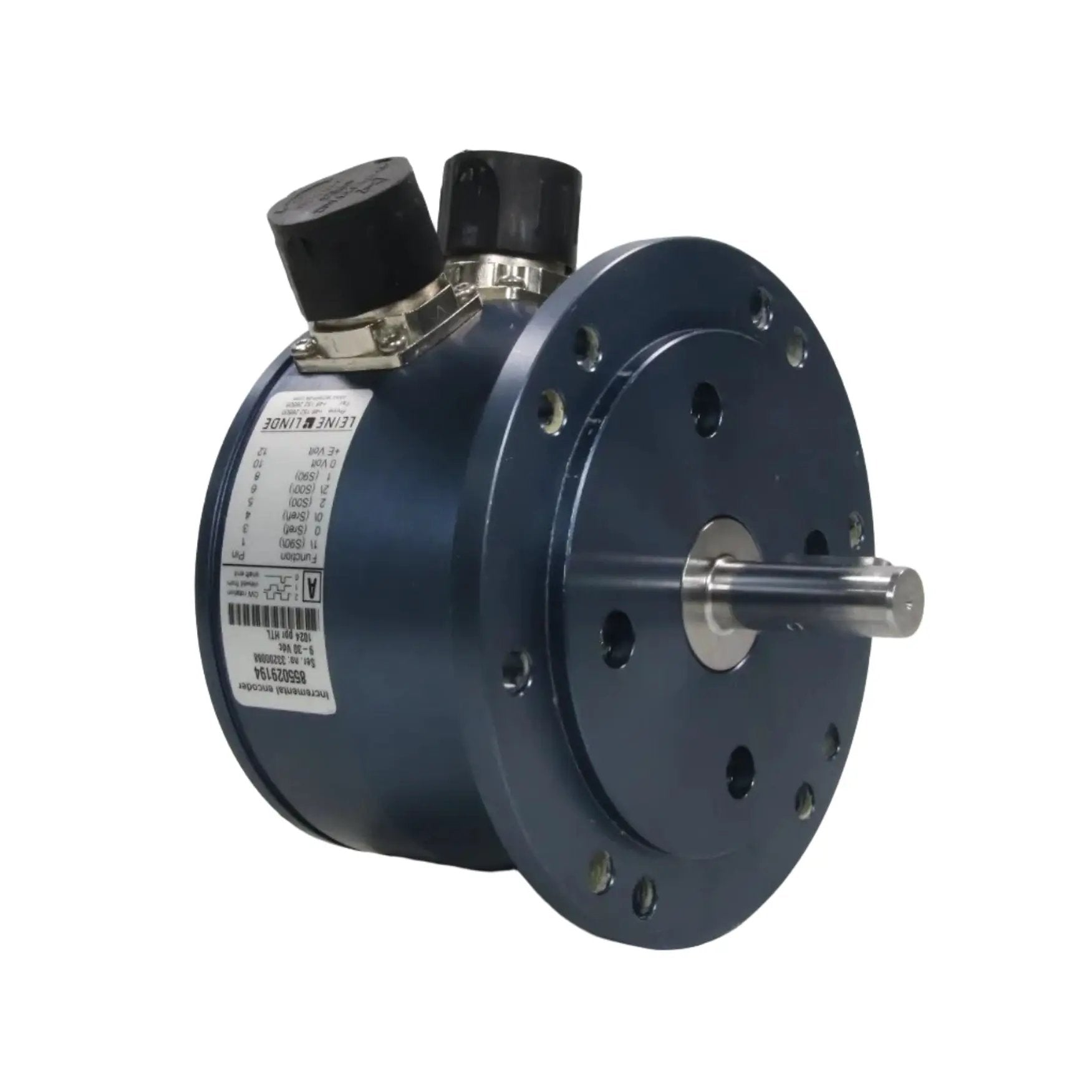

Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder

$521.52
$521.52
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Condition: Used

Size Guide
Subtotal: $521.52

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder-Heavy Duty Incremental Rotary Encoder-CD-04-04-01-6152428990914-Used Industrial Parts

Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder

$521.52
Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder-Heavy Duty Incremental Rotary Encoder-CD-04-04-01-6152428990914-Used Industrial Parts

Leine & Linde 855029194 Heavy Duty Incremental Rotary Encoder

$521.52
Condition: Used
Description
Description
x

- Brand: Leine & Linde (Leine & Linde AB, part of HEIDENHAIN Group)

- Model: 855029194

- Type: Heavy Duty Incremental Rotary Encoder

- Part number: 855029194

- Technical specifications:
- Sensing method: Optical
- Pulses per revolution (PPR): 2048
- Output signals: HTL (push-pull)
- Reference signal: Zero pulse (Z track)
- Voltage supply: 9–30 V DC
- Consumption w/o load: ≤100 mA
- Max. output frequency: Up to 120 kHz
- Max. speed: Up to 6000–12000 rpm
- Shaft: Solid shaft - Ø11 mm with keyway; EURO flange B10 compatible
- Flange / Housing: Robust housing with dual heavy-duty bearings
- Shock resistance: Up to 500 g / 1 ms (EN 60068-2-27)
- Vibration resistance: Up to 300 m/s² / 10–2000 Hz (EN 60068-2-6)
- Shaft load: Axial/radial up to 300–400 N
- Protection rating: IP66
- Operating temperature: -40°C to +100°C
- Additional features: Extremely robust and maintenance-free; dual bearings with long-term lubrication; optional advanced diagnostics; high EMC immunity; suitable for extreme industrial conditions; cost-effective heavy-duty choice
- Standards: Compliant with IEC/EN for industrial encoders; CE marked

Weight: 1.3 kg

Dimensions: Flange diameter: 115 mm; overall housing 130 mm diameter x 115 mm

Country of origin: Sweden

HS code: 9031.80
