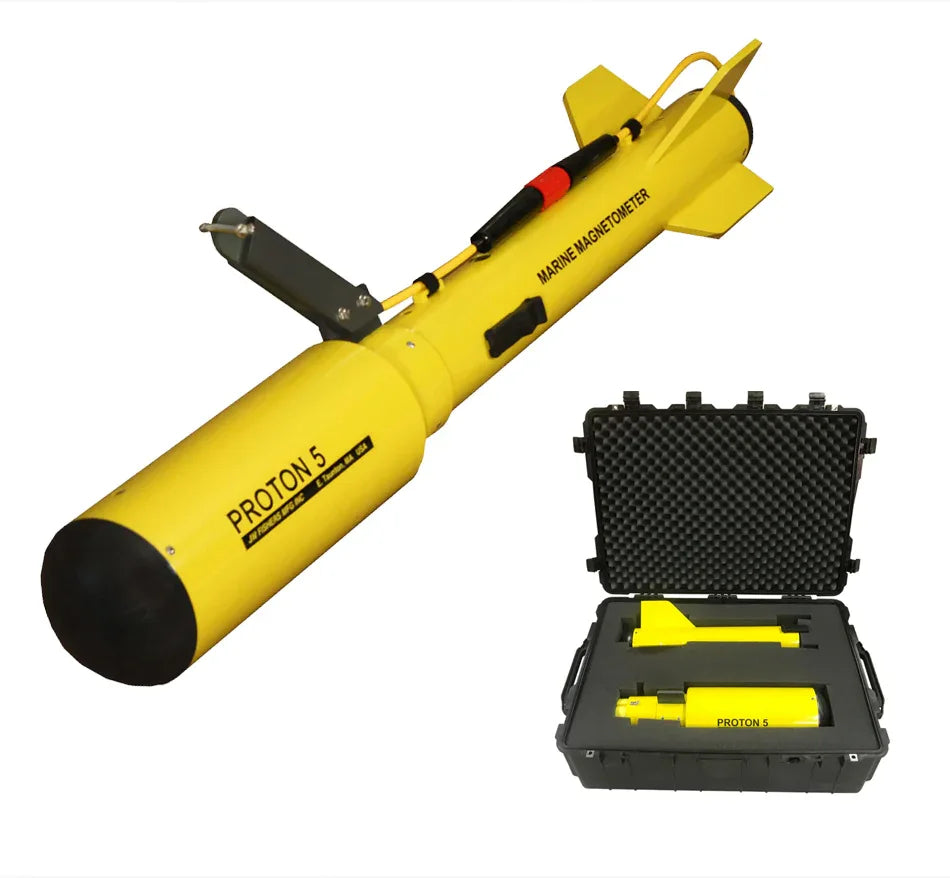

JW Fishers Proton 5 Boat Towed Magnetometer

The PROTON 5 is a fifth-generation proton magnetometer from JW Fishers. It is a top-performing microprocessor-driven marine magnetometer detection system. The Proton 5 definitive detector for iron and steel targets. Its maximum range capability of 1,500 feet (450m) on each side (3,000-foot total swath) lets you search a wide area quickly and completely. The mag is also a good choice for locating a variety of smaller targets such as pipelines, anchors, chains, cannons, dredge heads, etc. It is especially useful when objects are buried in the bottom and can't be found with sonar or video search systems.

Special Features:

With a one Nano-Tesla (nT) sensitivity, it has the maximum usable sensitivity for a towed proton precession magnetometer. A two-second cycle time gives a strong return signal and is fast enough to detect even small iron/steel targets. The PROTON 5 features a triaxial noise-canceling sensor that allows omnidirectional towing without heading error or dead zone. The system is fully digitized and displays the current 5-digit measurement on an easy-to-read6-inch LCD screen backlit for night operations. Up to 80 previous measurements are also shown graphically in a history plot on the LCD. The distance off the bottom of the tow fish is displayed with the optional altimeter. User-friendly menus allow easy configuration of all operation settings and system tuning directly from the top-side control box. An adjustable audio alarm lets the operator decide how much a change in the baseline reading will cause the alarm to fire.

The towfish has excellent hydrodynamic characteristics, moving smoothly through the water at tow speeds up to 10 knots. The Fish can be towed at almost any speed but should be towed slowly to locate small targets or when towing the Fish deep. A 2-3 knot tow speed is recommended for small targets. With the optional UA-3 Altimeter, precise distance off the bottom can be maintained. The Fish is towed behind the optional DDW-1 Deep Dive Wing depressor for deep-water towing. The collapsible PROTON 5 towfish it easily fits into a watertight Pelican® case. Modular construction allows easy field repair, should it ever be necessary.

The base system includes a 200-foot depth rated towfish, 150 feet of Kevlar reinforced tow cable, and topside control box. Optional USB data output and Tracker 3 software are available which allow the mag readout to be displayed on a laptop computer, along with GPS position coordinates. Target position is displayed and recorded on the computer. An optional Microsoft Surface ® tablet can be mounted in the control box lid, eliminating the need for a separate laptop computer making it a streamlined package.

System Information

Dimensions and Weights

Options

• Additional cable: $5/foot

• 1,000 feet (˜300m) depth rated housing: $995

• USB Data Output (includes detector output and your GPS data) - see below for software: $995

• Tracker 3 data collection and storage software: $995

• Microsoft Surface® Tablet: $949

• DDW-1 Deep Dive Wing (for deep water towing): $1,395

• Cable Management System 1: $3,295

• Cable Management System 2: $3,995

Warranty

Your JW Fishers Search Equipment is constructed of some of the finest materials available. Your equipment underwent constant inspection during assembly to ensure many years of trouble-free performance. This warranty covers your product for Two Full Years from the date of purchase. During this period, your equipment will be repaired free of charge should a failure occur due to materials or workmanship. The Warranty does not cover damage due to droppage or general misuse. Should service be required, email or call us to explain the nature of the problem, and we will supply instructions. JW Fishers backs the equipment with a guarantee that says if it does not perform as stated in our published literature, we will repair it or replace it at no charge under warranty.
