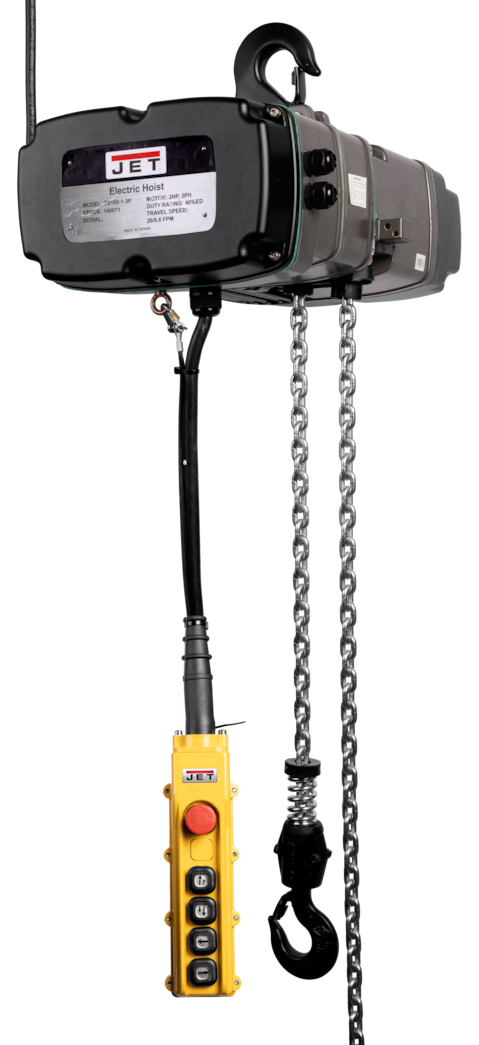

JET 1/2-Ton 2 Speed Electric Chain Hoist 3-Ph 10ft Lift w/ 2 Speed Trolley TS050-460-010 KIT

JET 1/2-Ton Two Speed Electric Chain Hoist with 3-Phase Motor, 10' Lift, 2 Speed Trolley, and 4 Button Wired Pendant is engineered by JET for demanding industrial lifting applications where safety, precision, and durability are non-negotiable. Combining a two-speed motor, patented gear limit switch, and robust overload protection into one powerful package, this electric chain hoist delivers reliable performance in even the harshest working environments.

Key Features

• The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
• Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
• DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
• Two Speed Motor ensures the correct speed for the job with a click of a button
• IP55 TEFC Motor with Class F insulation for working in harsh environments
• 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
• Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
• Built in heat protection will not allow lifting if internal temperatures exceed 285 deg.F (+/-40 deg.). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
• Comes with 10ft power supply cord

Specifications

• MPN: JT9-144001K
• Brand: JET
• Capacity: 1,100 lbs (1/2 Ton)
• Lift: 10 ft
• Motor Type: Two Speed, 3-Phase
• Motor Protection Rating: IP55 TEFC with Class F Insulation
• Pendant Rating: IP65 (Waterproof, Insulated, Impact Resistant)
• Pendant Type: 4 Button Wired Pendant
• Trolley: 2 Speed, 3-Phase
• Power Supply Cord Length: 10 ft
• Thermal Protection Cutoff: 285 deg.F (+/-40 deg.)
• Country of Origin: Taiwan

What's Included

• JET 1/2-Ton Two Speed Electric Chain Hoist (3-Phase)
• 2 Speed Trolley (3-Phase)
• 4 Button Wired Pendant (6 ft)
• 10 ft power supply cord

Frequently Asked Questions

What safety features are built into this electric chain hoist?

This hoist includes multiple layers of safety protection: the 2 in 1 Mechanical Brake and Overload Protection design safeguards both the operator and the hoist, the DC Motor Brake actuates instantly in the event of a power failure, the patented gear limit switch cuts power immediately if the hook reaches an over lifting or lowering position, and built-in heat protection prevents lifting if internal temperatures exceed 285 deg.F while still allowing the load to be safely lowered.

Is this hoist suitable for use in wet or harsh industrial environments?

Yes. The hoist features an IP55 TEFC Motor with Class F insulation specifically designed for working in harsh environments. Additionally, the Pendant Control is IP65 rated and is fully water-proof, insulated, and impact resistant for years of service.

What is the benefit of the Two Speed Motor on this chain hoist?

The Two Speed Motor ensures the correct speed for the job with a click of a button, allowing operators to move loads quickly when needed and then switch to a slower speed for precise placement - reducing excessive bump firing and improving overall efficiency and control.

How does the 5 Pocket Chain Sprocket improve hoist performance?

The 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads, resulting in a more controlled lift cycle and a longer service life for both the chain and the hoist itself.
