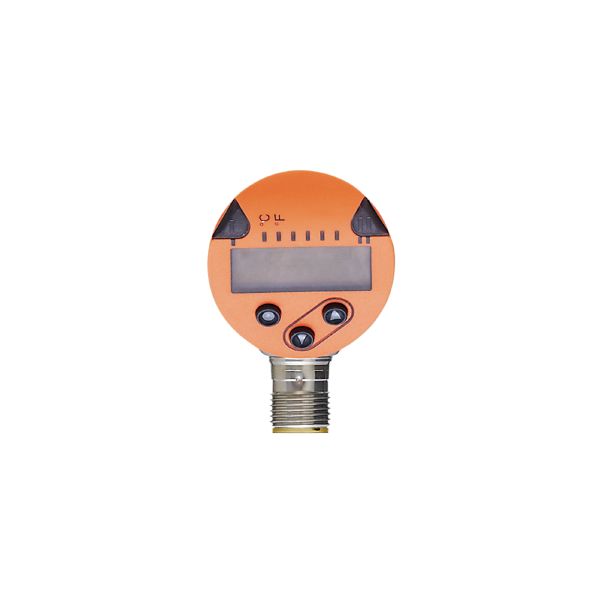

Ifm TN2435 Temperature Sensor With Display
Ifm TN2435 Temperature Sensor With Display

Ifm TN2435 Temperature Sensor With Display

$353.78
$353.78
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S

Size Guide
Subtotal: $353.78

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Ifm TN2435 Temperature Sensor With Display

Ifm TN2435 Temperature Sensor With Display

$353.78
Ifm TN2435 Temperature Sensor With Display

Ifm TN2435 Temperature Sensor With Display

$353.78
Description
Description
x
Product characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Measuring range
-50...150 °C -58...302 °F
Communication interface IO-Link
Process connection threaded connection G 1/2
Installation length EL [mm] 100
Application
System gold-plated contacts
Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
Media liquids and gases
Pressure rating [bar] 250
Electrical data
Operating voltage [V] 18...32 DC; (cULus - Class 2 source required)
Current consumption [mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 1
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Number of analog outputs 1
Analog current output [mA] 4...20
Max. load [Ω] 500
Analog voltage output [V] 0...10
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
-50...150 °C -58...302 °F
Factory setting -50...150 °C
Set point SP
-49.8...150 °C -57.6...302 °F
Reset point rP
-50...149.8 °C -58...301.6 °F
Analog start point
-50...145 °C -58...293 °F
Analog end point
-45...150 °C -49...302 °F
In steps of
0.1 °C 0.1 °F
Resolution
Resolution of switching output [K] 0.1
Resolution of analog output [K] current output: MS / 4096; voltage output: MS / 3561
Resolution of display [K] 0.1
Accuracy / deviations
Switch point accuracy [K] ± 0,3 + (± 0,1 % MS)
Precision analog output [K] ± 0,3 + (± 0,1 % MS)
Display accuracy [K] ± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K] 0,1; (In case of deviation from the reference condition 25 ± 5 °C)
Reaction times
Dynamic response T05 / T09 [s] 1 / 3; (according to DIN EN 60751)
Software / programming
Parameter setting options hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 207
UL approval
