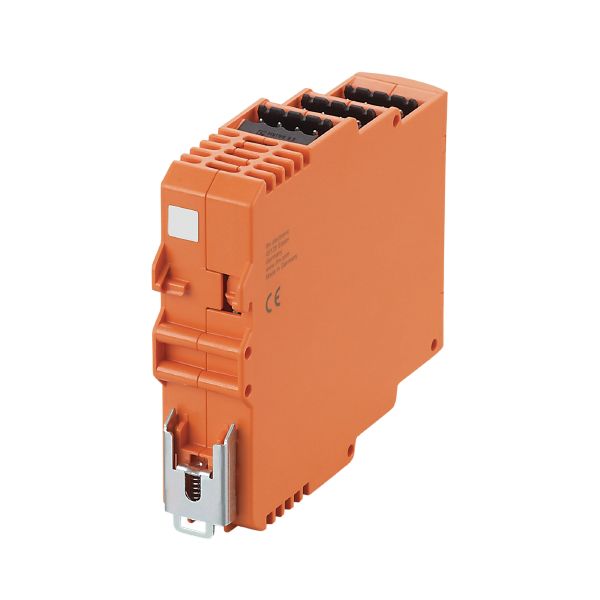

Ifm AC3216 As-Interface Control Cabinet Module
Ifm AC3216 As-Interface Control Cabinet Module

Ifm AC3216 As-Interface Control Cabinet Module

$507.11
$507.11
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S

Size Guide
Subtotal: $507.11

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Ifm AC3216 As-Interface Control Cabinet Module

Ifm AC3216 As-Interface Control Cabinet Module

$507.11
Ifm AC3216 As-Interface Control Cabinet Module

Ifm AC3216 As-Interface Control Cabinet Module

$507.11
Description
Description
x
Application
Application I/O modules for control cabinet installations
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 157
Reverse polarity protection yes
Additional voltage supply [V] 20...30 DC; (AUX)
Additional voltage supply optional
Max. current consumption from additional supply [mA] 550; (AUX)
Inputs / outputs
Number of inputs and outputs Number of analog inputs: 4
Inputs
Sensor supply of the inputs AS-i / AUX
Voltage supply [V] 18...30
Max. total current rating of inputs [mA] 100
Number of analog inputs 4; (connection of 2-wire, 3-wire and 4-wire sensors)
Analog input (current) [mA] 4...20
Analog inputs protected against short circuits no
Resolution of analog input 16 bit (1 bit = 1 µA)
Precision analog input [%] 0,5
Operating conditions
Ambient temperature [°C] 0...70
Storage temperature [°C] -20...85
Max. relative air humidity [%] 90; (non condensing)
Max. height above sea level [m] 2000
Protection IP 20
Protection rating terminals IP 20
Degree of soiling 2
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
UL approval
voltage supply Class 2
AS-i classification
AS-i version 2.11; 3.0
AS-i addressing Addressing socket
Extended addressing mode no
AS-i master profile M3; M4
AS-i profile S-7.3.E
AS-i I/O configuration [hex] 7
AS-i ID code [hex] 3.E
Mechanical data
Weight [g] 260.7
Type of mounting Mounting on DIN rail
Material PC-GF20
Displays / operating elements
Display
analog signal LED, yellow Channels AI1...AI4
diagnosis LED, yellow
Power LED, green AS-i, AUX
errors LED, red
Accessories
Items supplied
Combicon connector
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection pin headers: 4 x ; Spacing: 5.0 mm
