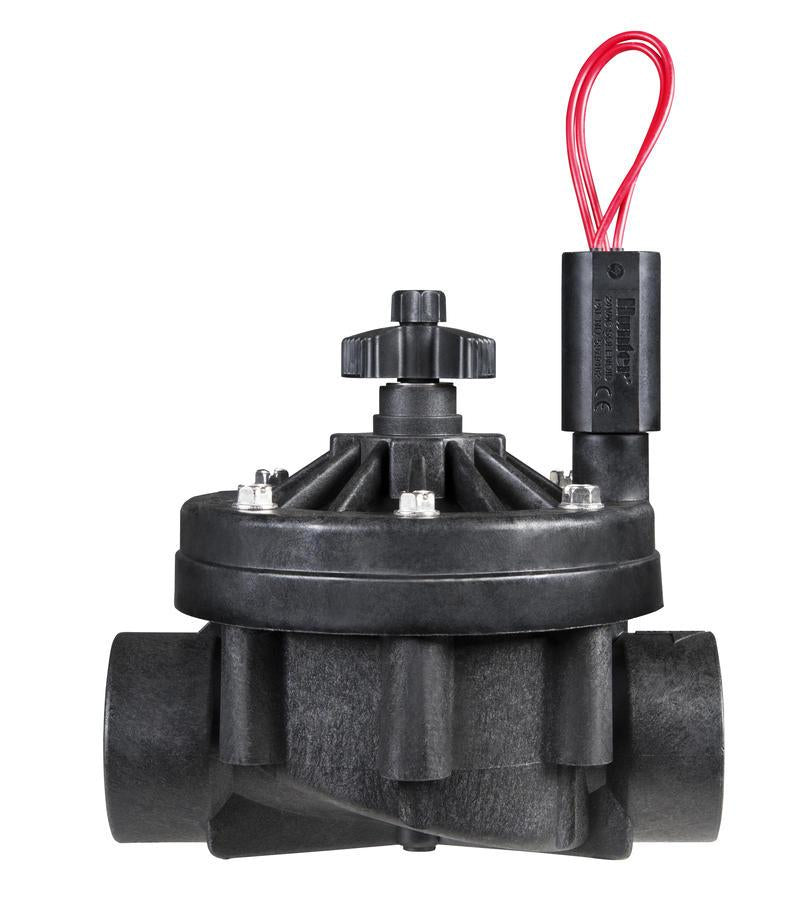

Hunter Industries - ICV-151G-FS 1 1/2 Inch ICV Globe Valve, With Filter Sentry

In order to create a plastic valve that can consistently operate at 220 PSI, Hunter relies on only materials that are both time and contractor proven. Created to handle the wide range of conditions different sites will bring, the ICV valve includes both a fabric reinforced E.P.D.M. diaphragm and seat, and flow control as standard features. It can consistently withstand pressures of up to 220 PSI while handling the continual hammer that such forces will produce. Plus, it’s exceptionally easy to service, with bonnet fasteners that can be loosened and tightened using a variety of common contractor tools. A Filter SentryTM option is also available for applications that involve dirty water. The Filter Sentry™ system keeps the valve free of debris found in reclaimed water or ponds.
Application: Commercial/municipal

Key Features:

• External and internal manual bleed allows quick and easy “at the valve” activation
• Glass-filled nylon construction results in the highest pressure rating
• Double-beaded diaphragm seal design for superior leak-free performance
• Fabric reinforced EPDM diaphragm and EPDM seat ensure superior performance in all water conditions
• DC latching solenoids enable Hunter’s battery-powered controllers
• Captive bonnet bolts provide hassle-free valve maintenance
• Low flow capability allows for use with Hunter's micro irrigation products
• Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
• Temperature rating: 150° F
• Warranty period: 5 years.

Specifications:

• Holding Current: 190mA
• Tempature: 150
• Warranty: Five Years
• Flow Rate: 20 - 135 GPM
• Inlet Size: 1.5
• Inlet Thread: Female NPT
• Flow Control: 20 - 135 GPM
• Pressure Rating/Range: 20 - 220
