Hikvision Ax Pro Wireless Single Input Transmitter DS-PM1-I1-WB

Description

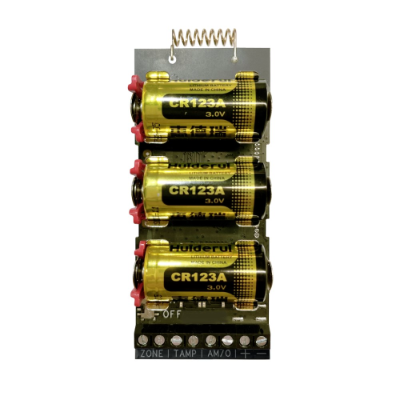

The Hikvision HIK-PM1-I1-W single input transmitter is supplied as PCB only and is intended to convert any hardwired device into a wireless one. It has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Features

• LED display
• Easy to install design
• Can be used as zone input or alarm output
• Detects device removals
• Easily replaceable batteries
• Frequency hopping
• Alarm input: 1 alarm, 1 tamper
• Alarm output: 1 PGM, AM/output
• Transmission range: 1.3km
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: CR123 x 3
• Battery life: 5 years
• Size: 102mm x 41mm x 20mm
• Weight: without batteries: 35g, with batteries: 90g

Downloads

Datasheet
