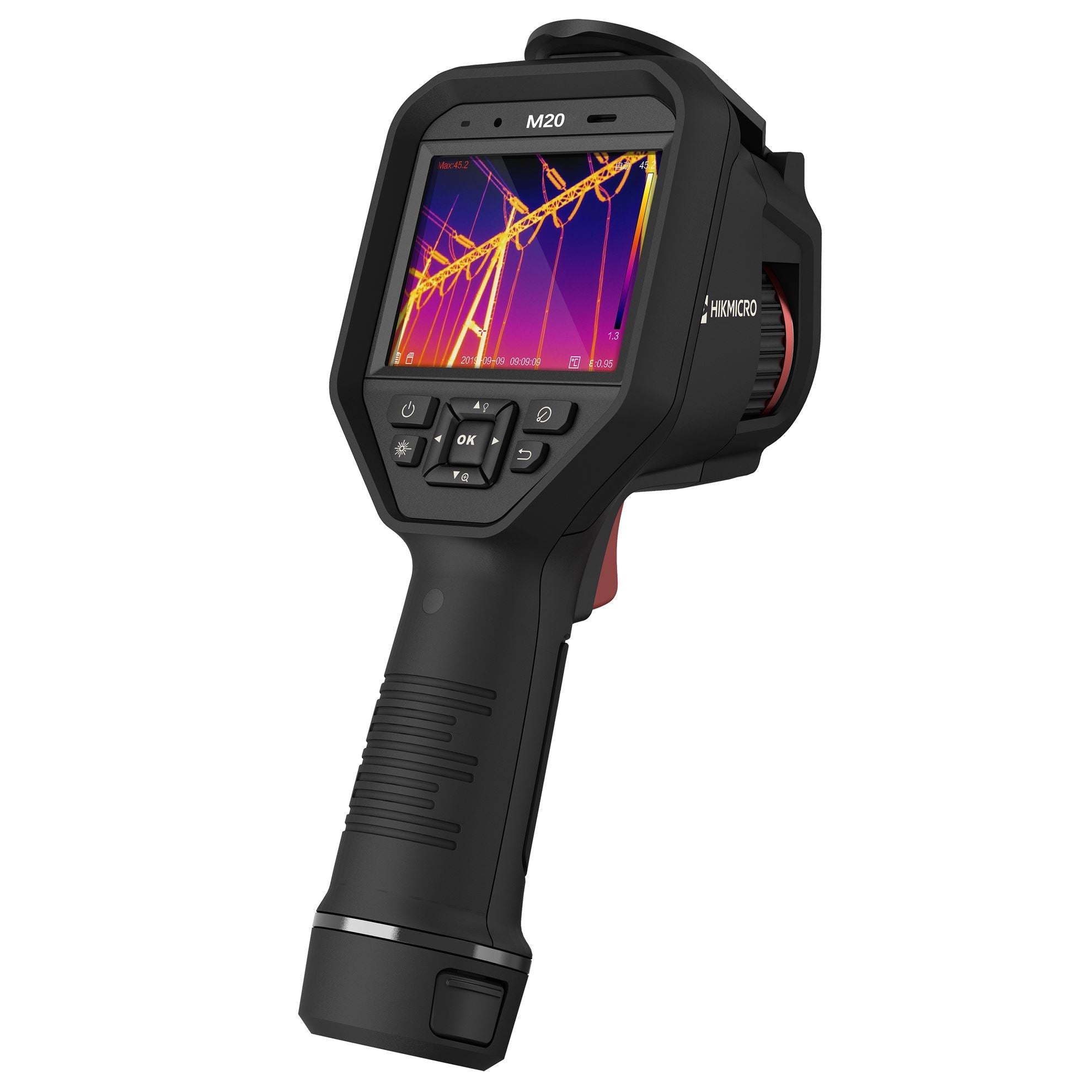

HIKMICRO M20 Handheld Wi-Fi Manual Focus Thermal Imaging Camera. 3.5" LCD Touch Screen. Thermal, Visual, Fusion, PIP & Blending Image Modes. Thermal Resolution: 49,152 Pixels.

HIKMICRO M20 Handheld Wi-Fi Manual Focus Thermal Imaging Camera. 3.5" LCD Touch Screen. Thermal, Visual, Fusion, PIP & Blending Image Modes. Thermal Resolution: 49,152 Pixels.

HIKMICRO M20W handheld thermography camera is specially designed for professional inspections of large objects where a wider FOV captures more of the scene in one picture. It’s equipped with a 256 × 192 resolution thermal detector, 50° × 37.2° fixed focus lens, and an 8 MP resolution visual camera. The high-resolution 3.5-inch touchscreen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20W quickly identifies potential faults and quantifies the impact with accurate temperature measurements, provides detailed documentation to complete your inspections efficiently.

Features:

• High-sensitivity thermal module with 256 × 192 resolution
• Supports multiple palettes
• High-quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20°C to 550°C
• High-temperature measurement accuracy: Max. (± 2°C ± 2%), for ambient temperatures 15°C to 35°C (59°F to 95°F) and object temperature above 0°C
• 640 × 480 resolution 3.5'' LCD touch display
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• 1.0x to 8.0x continuous digital zoom
• Support remote album access, download and quick report with APP.

Interchangeable Battery System

Includes 2 interchangeable Li-ion batteries and a dual bay charger for up to 12 hours of operation. You can stay powered up for even the longest inspections.



Multiple Image Annotations

Text or audio annotations within the images instead of taking notes by hand, helping to improve inspection efficiency and productivity.



1-Tap Level & Span

Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.



Rugged & Durable Design

IP54 rated for protection against water and dust. Featuring 2m drop protection, suitable for industrial use.
