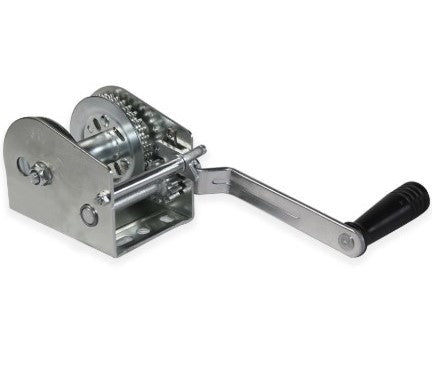

Goliath 3N1 Hand Winch 470kg (151-9-1)
Goliath 3N1 Hand Winch 470kg (151-9-1)

Goliath - N Range of Pulling Winches with Ratchet

$35.20
$35.20
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Choose by Model & Max Pulling Capacity & Max Rope Dia Below:: 3N1 / 470kg / Max Rope Ø3mm @ 22m

Size Guide
Subtotal: $35.20

Free Shipping

Free Shipping on $70 or More!

Standard Delivery time 15 Bussiness days.

Expedited Delivery time 10 bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Goliath 3N1 Hand Winch 470kg (151-9-1)

Goliath - N Range of Pulling Winches with Ratchet

$35.20
Goliath 3N1 Hand Winch 470kg (151-9-1)

Goliath - N Range of Pulling Winches with Ratchet

$35.20
Choose by Model & Max Pulling Capacity & Max Rope Dia Below:: 3N1 / 470kg / Max Rope Ø3mm @ 22m
Description
Description
x

Goliath N Range of Pulling Winches with Ratchet (for use with Wire Rope)

  • Winches for pulling applications only (0% incline or load independently secured)
  • Reversible ratchet with 3 positions, except for 3N1 models (2 positions)
  • Speed options: 1 to 3 speeds available
    • 1 speed: 3N1, 5N1, 7N1, 9N1
    • 2 speeds: 16N2, 16N2F
    • 3 speeds: 25N3F
  • Surface treatment: Zinc plated
  • Pulling capacity: From 470kg to 2,700kg
  • Handle options:
    • Fixed on 3N1, 5N1, 7N1, 9N1
    • Removable on 16N2, 16N2F, 25N3F
  • Speed-reducing brake: Available on 16N2F and 25N3F models
The N range of winches can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate. These winches are designed for use with wire rope, which is not included as standard but can be purchased as an optional extra.

*Important note for all users / purchasers :

These winches are neither designed according to EC standard nor for the transport of people or for lifting applications and must not be used for such purposes. When in operation DO NOT reverse or change the ratchet position until the load has been secured safely. Do not come with safety brake. Like any other ratchet winch on the market, the N series cannot be labelled CE.
Attention: any pulled or lifted load must be secured by another device while operating (except on a horizontal surface).

Specification

**Warning: These winches are not designed according to EC standard
Do not come with safety brake

Model

SKU

Pulling Capacity

Handle

Brake

Maximum Cable 1 Ø (mm) / length (m)

Goliath 3N1

151-9-1

470kg

 Fixed

No

ø3/22m

Goliath 5N1

151-9-2

596kg

 Fixed

No

ø5/17m

Goliath 7N1

151-9-3

723kg

 Fixed

No

ø5/32m

Goliath 9N1

151-9-4

894kg

 Fixed

No

ø6/21m

Goliath 16N2F

151-9-5

1556kg

 Removable

No

ø7/14m

Goliath 16N2F

151-9-6

1556kg

 Removable

Speed reducing brake

ø7/14m

Goliath 25N3F

151-9-7

2741kg

 Removable

Speed reducing brake

ø8/14m
