Description

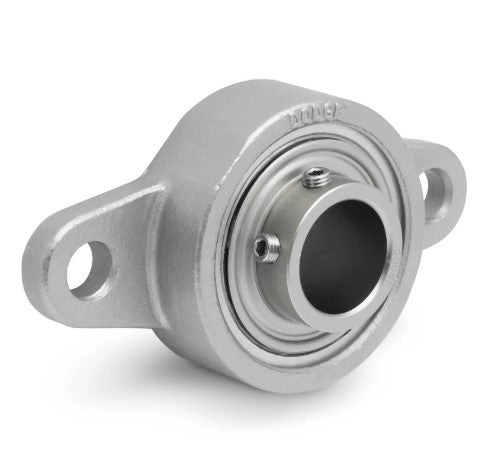

x30 mm bore Food Grade Two-Bolt Flange with Set Screw locking, Stainless Steel Material.
| Dimensions | |
|---|---|
|
Bolt to Bolt Min
|
4.5900 in
116.586 mm
|
|
Bolt to Bolt Max
|
4.5900 in
116.586 mm
|
|
Bore Length
|
1.5200 in
38.608 mm
|
|
Bolt Diameter
|
0.4375 in
11.112 mm
|
| General | |
|---|---|
|
Bearing Type
|
Ball |
|
Ball Bearing Series
|
206 Series |
|
Housing Construction
|
Solid |
|
Housing Material
|
Stainless Steel |
|
Housing Type
|
Two-Bolt Flange |
|
Expansion Capability
|
Non-Expansion (Fixed) |
|
Shaft Attachment
|
Setscrew |
|
Bearing Component
|
Mounted Bearing |
|
Insert Material
|
Plated Stainless Steel |
|
Suitable for High Temperature
|
No |
|
Suitable For Washdown
|
Yes |
|
Standoff Housing
|
No |
| Sealing & Lubrication | |
|---|---|
|
Seal Type
|
Triple-Lip Contact |
|
Greasable
|
No |
|
Lubrication Type
|
Grease |
|
Grease Name
|
MobilGrease FM222 |
| Technical | |
|---|---|
|
Dynamic Load Capacity_POUND_FORCE
|
4368 lbf
19429.832 N
|
|
Static Load Capacity
|
2538 lbf
11289.586 N
|
|
Maximum Speed
|
675 rpm |
