Description
x[shortdesc]
- Switch
- Managed
- 16 × 10/100 (4 × PoE+) + 2 × combo GE (RJ-45/SFP) uplinks
- DIN-rail mountable
- PoE+
[/shortdesc]
[properties]
| Properties | Cisco IE-2000-16PTC-G-E |
| Description | IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (LAN Base) |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 18 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 GE |
| SFP Ports | - |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1, 2 |
| IEEE 1588 | Yes |
| NAT | U |
| PoE(+) | Yes |
| Conformal Coating | - |
| Type of possible upgrade legend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
| Quality of Service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (H×W×D) | 5.1"H × 5.0"W × 5.26"D (130 mm × 127 mm × 134 mm) |
| Weight | 4.35 lb (1.97 kg) |
[/properties] [specifications]
| Specifications | IE-2000-16PTC-G-E |
| DRAM | 256 MB DRAM with ECC memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power Consumption | 16-port base switch: 21–30 W; plus 4-port PoE/PoE+ power requirement |
| Connectors and Cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40°C to +70°C (vented enclosure – 40 LFM) -40°C to +60°C (sealed enclosure – 0 LFM) -34°C to +75°C (fan/blower-equipped enclosure – 200 LFM) -40°C to +85°C (IEC 60068-2-2 type test, 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1; NOM-019-SCF1; CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS; AS/NZS CISPR 22/24; CISPR11/22 Class A; ICES-003 Class A; KCC; CE; C-Tick; Russia & Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational 55–70G, trapezoidal); IEC 60068-2-6/-2-64; EN 61373 |
| Industry Standards | UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; IEEE 1613/IEC 61850-3; EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT; IP30; ODVA EtherNet/IP; PROFINET v2.3 |
| Humidity | IEC 60068-2-52 (salt fog mist) marine; IEC 60068-2-3; IEC 60068-2-30; 5%–95% non-condensing |
[/specifications] [accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB= | 1 GB ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL= | 19 in. DIN-rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features, MRP ring, etc.) |
| L-IE2000-L-B= | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E= | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L= | IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP= | IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER= | MRP Ring Manager license |
| LIC-MRP-Client= | MRP Ring Client license |
| Wallmount-IE2k-16= | Wall-mount kit accessory for IE2000 16-ports downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC= | 50W AC |
| PWR-IE50W-AC-L= | 50W AC-L |
| PWR-IE65W-PC-AC= | 65W PC-AC |
| PWR-IE65W-PC-DC= | 65W PC-DC |
| PWR-IE170W-PC-AC= | 170W PC-AC |
| PWR-IE170W-PC-DC= | 170W PC-DC |
| PWR-IE240W-PCAC-L= | 240W PC-AC-L |
| PWR-IE480W-PCAC-L= | 480W PC-AC-L |
[/accesories]

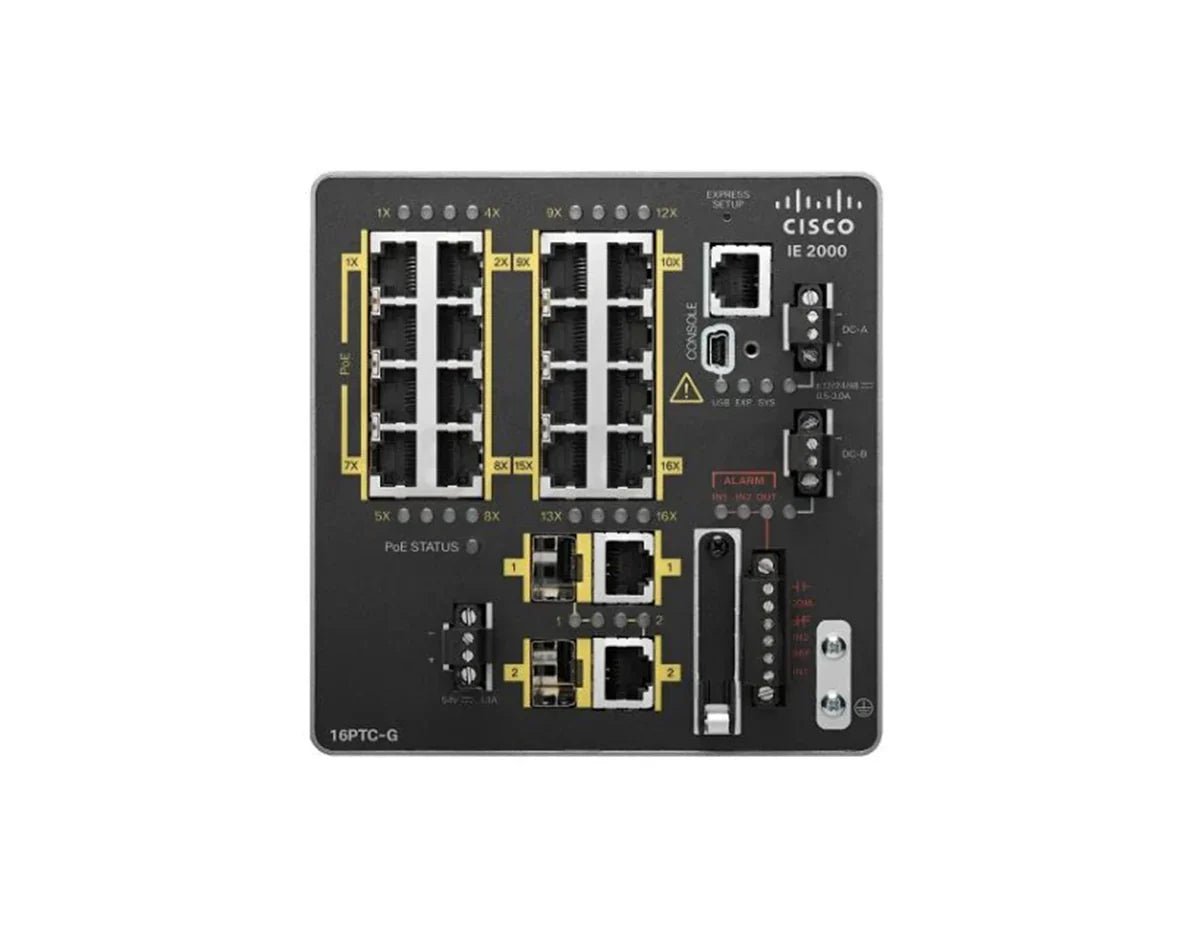

Cisco IE-2000-16PTC-G-E Industrial Ethernet Switch
The Cisco IE-2000-16PTC-G-E is a rugged and reliable industrial Ethernet switch designed to deliver high-performance connectivity in challenging environments. This switch features 16 Fast Ethernet ports, 2 Gigabit combo ports (RJ-45/SFP), and 4 Fast Ethernet PoE+ ports, making it ideal for powering and connecting industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16PTC-G-E is engineered to withstand extreme conditions, ensuring continuous operation in demanding industrial settings, while offering essential Layer 2 management features for network segmentation and traffic control.
Key Features:
- 16 × Fast Ethernet Ports: Provides reliable data connectivity for a variety of industrial devices, ensuring efficient network communication.
- 2 × Gigabit Combo Ports: Offers flexible uplink options with RJ-45 and SFP connectivity, ensuring high-speed data transfer and network scalability.
- 4 × Fast Ethernet PoE+ Ports: Supplies power and data to PoE-enabled devices, reducing cabling requirements and simplifying installation.
- Ruggedized Design: Built to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
Technical Overview:
- Recommended for: Industrial environments requiring durable, high-performance Ethernet connectivity with PoE support and flexible uplinks.
- Ports: 16 × Fast Ethernet ports, 2 × Gigabit combo ports (RJ-45/SFP), 4 × Fast Ethernet PoE+ ports.
- PoE Budget: Supported; size according to selected power supply.
- Operating Temperature: Wide temperature range suitable for industrial applications.
- Management: Web interface, CLI, and SNMP for easy network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-2000-16PTC-G-E datasheet.
