High Speed Guide Wheel Pulley Assembly,EDM Brass Seat Pulley Assembly

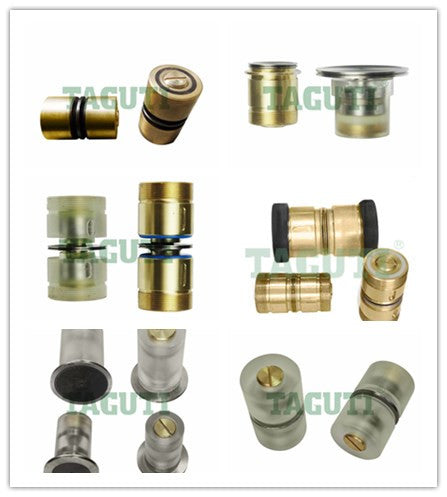

Guide wheel pulley assembly

Guide wheel pulley assembly has the features of guide wheel brass seat, specialized bearing for wire EDM cutting, precious assembly, good concentricity, small gap, stable wire transport, wear resistance, long service life.

Product Specification

• The functions of guide wheel pulley assembly in high speed wire cut machine: HS-WEDM guide wheel pulley assembly is mainly used to provide stable transmission and orientation for molybdenum wire.

• The materials of wire cut guide wheel pulley assembly in FS-WEDM: brass seat for guide wheel pulley assembly, plexiglass / organic glass / plastic seat guide assembly of WEDM wire cut parts.

• The shapes of guide wheel pulley assembly in high speed wire EDM: uniaxial guide pulley assembly, biaxial guide pulley assembly.

• High speed wire cut guide wheel pulley assembly is made up of guide wheel, bearings, brass seat, nuts and end caps.

The price of common specifications is as above. Please consult our customer service for other specifications

The Selection Of Guide Pulley Assembly In Wire Cut EDM

                       1. Guide Wheel Seat:   □   Brass      □   Organic Glass

                       2. Guide Wheel Material:    □   Metal      □   Ceramic     □   Sapphire

                       3. Shape of Guide Pulley Assembly:    □   Biaxial      □   Uniaxial

                       4. Dimension:  Outer Diameter:  Ø                mm     Length                mm

Commonly Used Biaxial Guide Pulley Assembly

TAGUTI Order No.	Photo	Outer Diameter	Length	Material
DZJ-3053		Ø 30mm	53mm	Brass seat and metal guide wheel
DZJ-3260		Ø 32mm	60mm	Brass seat and metal guide wheel
DZJ-3267			67mm
DZJ-3270			70mm
DZJ-4060		Ø 40mm	60mm	Brass seat and metal guide wheel
DZJ-4064			64mm
DZJ-4260		Ø 42mm	60mm	Brass seat and metal guide wheel
DZJ-4264			64mm
DZJ-4267			67mm

Commonly Used Uniaxial Guide Pulley Assembly
