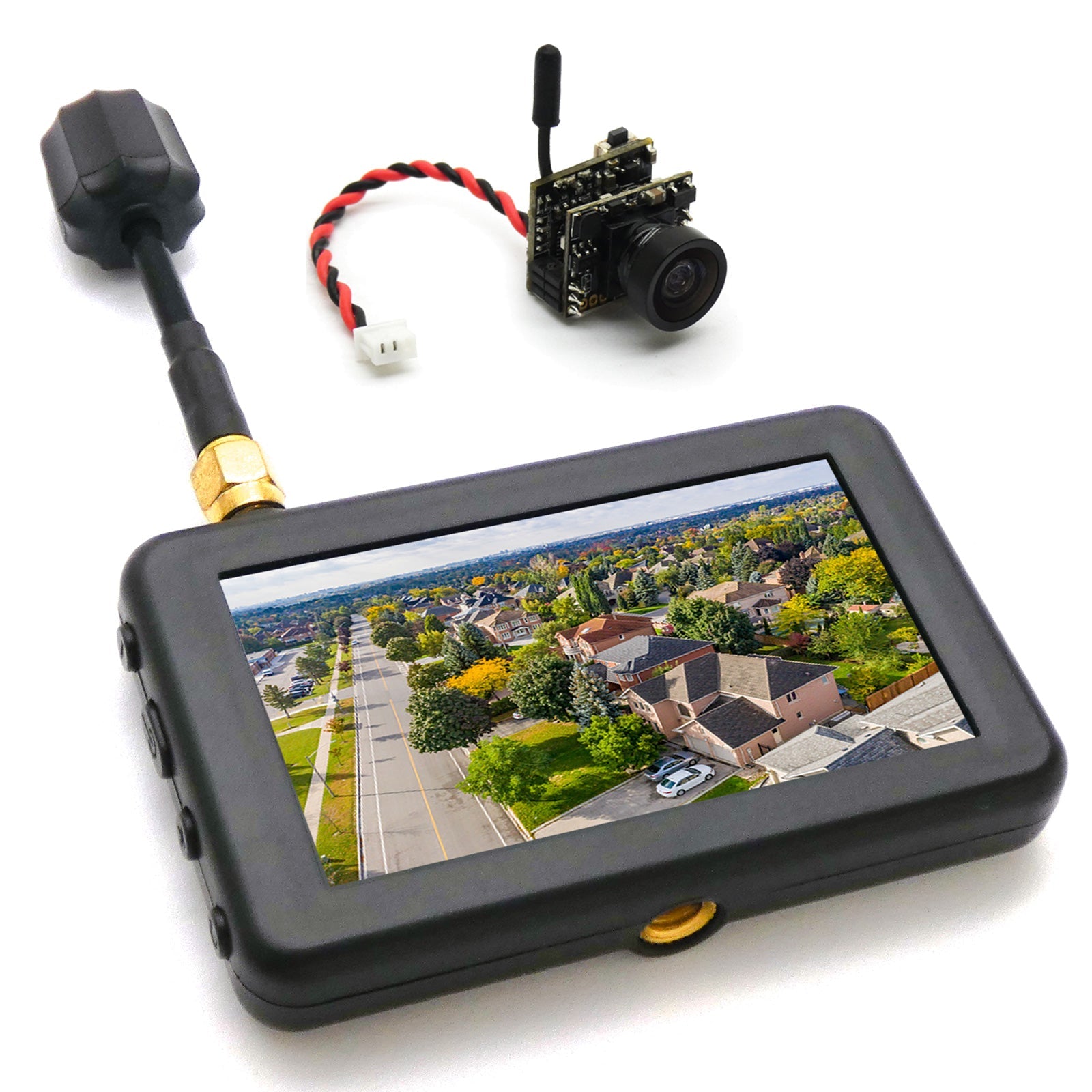

5.8GHz Mini 3" FPV Monitor with Micro 25mW Camera Transmitter Combo

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern micro AIO model, designed with the needs of drone pilots and RC enthusiasts in mind.

Camera/Video Transmitter Features:

• Sensor: 1/4 "CMOS
• Lens: M8 800TVL Lens
• Angle: 150 Degrees FOV horizontal viewing angle of 170 Degrees DFOV diagonal perspective
• Format: NTSC / PAL (switchable)
• Power consumption: 230mA @ 3 · 7V
• Power: 3.2-5.5V
• Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

• Channel Selection - Short press (~1 sec): Change channels 1-8
• Band Selection - Medium press (~1.5sec): Change bands

• Small size and light weight
• Low power consumption
• Auto-Searching
• High brightness LCD screen
• Built-in super sensitiveness 5.8GHz 40ch receiver
• Built-in high-capacity Li-ion polymer Battery
• Universal USB charging interface
• Real-time video return, Very low time-delay
• Bilingual menu in support of Chinese and English
• Supports external video signal input
• Supports AV signal output (Connect external DVR)
• It can be used as a receiver for DJI� and other goggles

• Screen : 3.0 Inch IPS LCD
• Resolution: 480*320
• Display Ratio: 16:9
• View Angle: 360 Degrees without dead angle
• Brightness: 500cd/m² with high brightness backlight LED
• Video delay: less than 20ms
• Antenna: RP-SMA male
• Languages: English and Chinese
• Power adapter: DC5V/1A (USB interface)
• Battery: 3.7V/800mAh
• Power Consumption: 360~400mA at 3.7~4.2V

• 1x 5.8G 40CH LCD Mini FPV Monitor w/ Internal Battery - 3"
• 1x Antenna
• 2x Video Cables
• 1x IDC-681H AIO FPV Camera
• 1x Wiring Harness
