Description

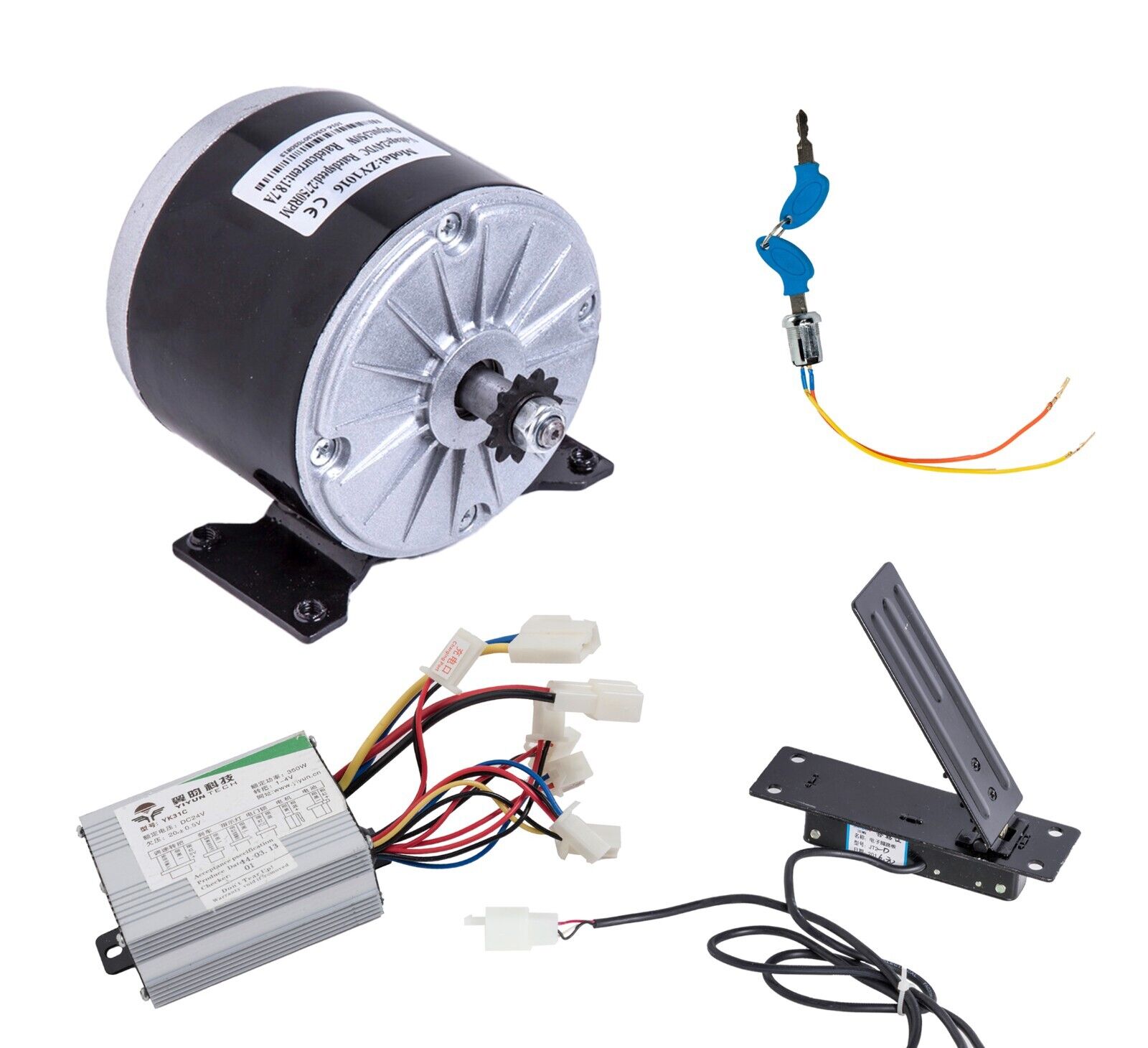

x350W motor type 1016
+
350W speed controller
+
Pedal Foot Throttle (compatible with the speed controller)
+
Key Lock Switch
MOTOR Specs:
- 24V DC
- Max 350 Watt, 18.7 amps
- Max 2750 RPM
- Chain drive (11 teeth sprocket) #25 chain 6.35 pitch
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet
Dimensions:
- Diameter: 4"
- Length aprox. (no shaft): 3"
- Length aprox (with shaft): 4"
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
Control box (speed controller) specs:
Dimension: aprox 2.75" x 2" x 1.5"
Weight: 8 OZ
Brand: Yiyun
Model: YK31C
This speed controller features connection terminals for:
- Battery
- Motor
- Charger
- Lock / on-off switch
- Brake (will shut off motor)
- Battery charge indicator
- Tail lamp
- Throttle
___________________________________________________________________________________________________________________
Foot Pedal Throttle Specifications:
Universal Black Electric Scooter Bike Foot Throttle 3Wire 12V 24V 36V 48V
Specifications:
- Brand new
- Electric Bike scooter Foot Throttle accelerator
- Compatible with 24v/36v/48v E-scooters (using 3 wires on the speed controller).
- Cable length is approximately 40 inches
- Wiring instructions:
Throttle |
Controller |
Description |
|
Red |
connects to |
Red |
Voltage 4.3 to 5.0 Volts |
Black |
connects to |
Black or Yellow |
Ground |
Green |
connects to |
Green, Blue or White |
Speed Adjusting Signal (0 to 5 Volts) |
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
Key Lock Switch
- Switch to turn controller on / off
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
This kit should work with some Xtreme or Razor electric scooter like E300, mini bike or go-kart using a 250W motor or DIY. Should also work with any other brand with similar specs in motor
Please check connector type and motor size and specs. before buying as replacement.
Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.
Most orders ship same day from our warehouse
Warranty: 12 Months from purchase date. We will only replace motors that do not work out of the box. We test all motors before shipping. We will not replace burnt out motors.
