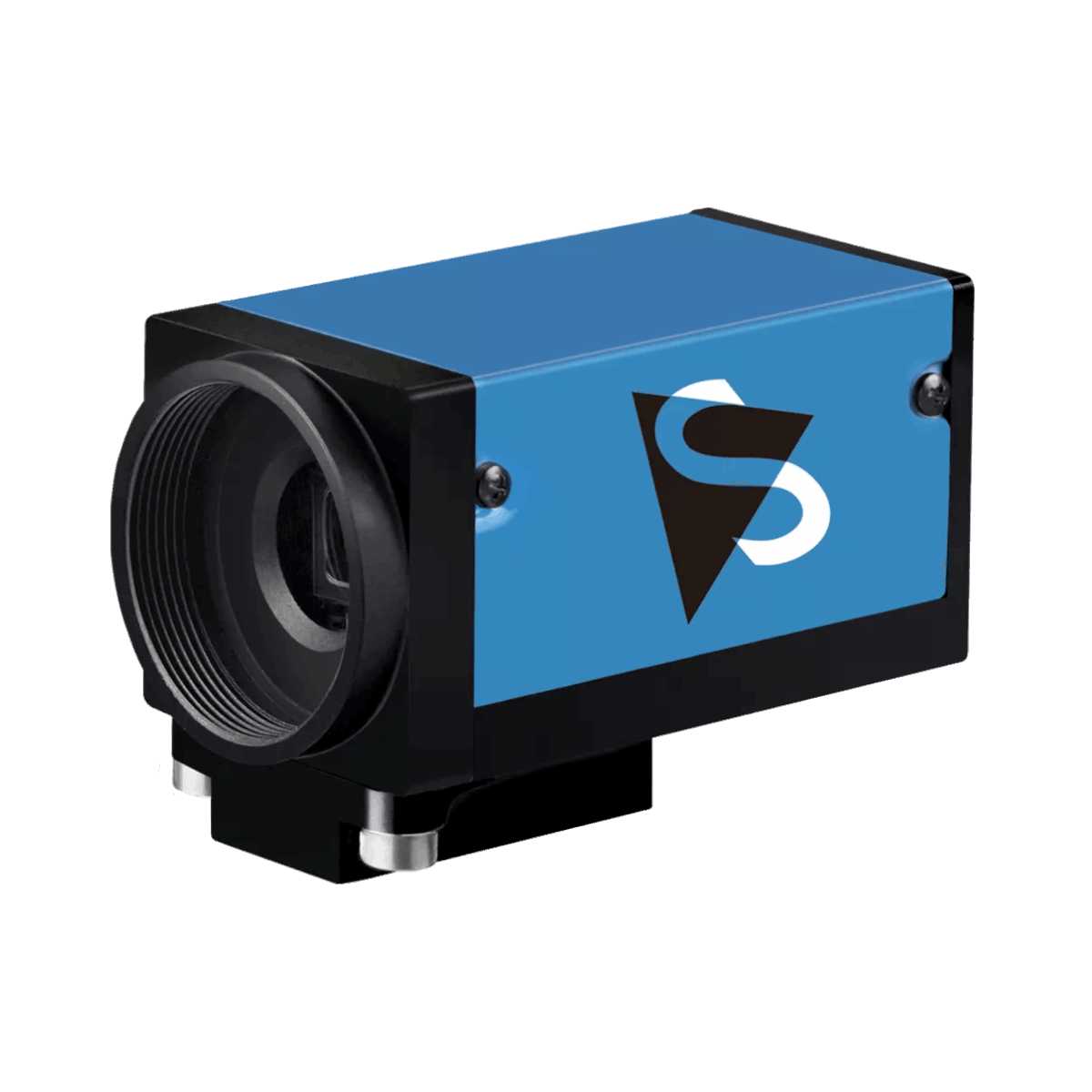

1.6MP 1/2.9" IMX273 GigE Monochrome Camera

Key Features

• 33G Series Monochrome Industrial Camera
• GigE Interface (RJ45)
• 1/2.9 inch Sony CMOS Pregius IMX273 Sensor
• 1,440×1,080 (1.6 MP), up to 75 fps
• Pixel Size: H: 3.45 µm, V: 3.45 µm
• Global Shutter
• Trigger and I/O Inputs
• Casing Compatible to Most Analog Cameras
• Only 29×29×57 mm

Do you need a C-Mount lens to pair with your camera? See our catalogue of C-Mount lenses.

What are the benefits of using a GigE interface camera?

GigE is a well-established and trusted technology due to the many protocols available, such as GenlCam. It is well-suited for a wide range of applications, including high-resolution cameras, real-time image processing, and robust data transmission. Furthermore, because of its twisted shielded pairs, this interface does not suffer from interference due to external sources such as RF (Radio Frequencies). GigE enables long range data transfer, with cable lengths of up to 100m, whereas USB is up to 7m (without optical/active cables).

What are the 33G series cameras?

The 33G Series industrial cameras from The Imaging Source provide a comprehensive range of CMOS sensors, ranging from 0.4 MP to 20 MP, and a frame rate of up to 300 fps, making them an ideal imaging solution for various machine vision applications. These cameras are fully equipped with advanced features and a GigE interface that enables extended cable lengths of up to 100m without compromising image quality or performance.
