Description

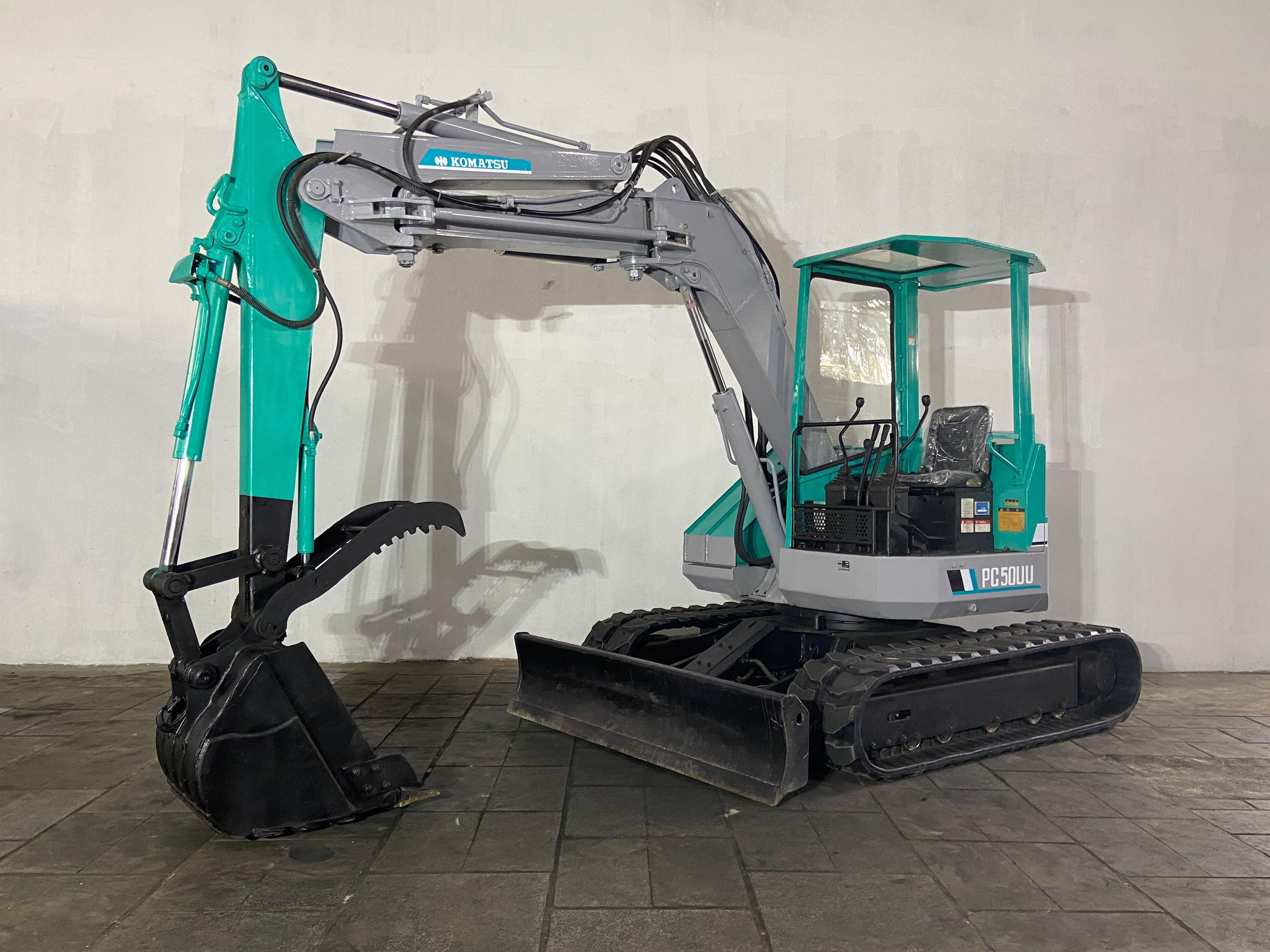

This 1991-built Komatsu PC50UU compact excavator with 11,500-pound operating weight has been professionally reconditioned and thoroughly serviced. It only has 3,350 hours, and the machine is in great running condition with minor cosmetic wear and tear as shown on our photos and demonstration video. This machine is equipped with a Komatsu 3D95S-W-1 diesel engine delivering 38.5 horsepower. The unit has been upgraded with new hydraulic thumb, new Panasonic starting battery, new seat & seat belt, new decals, and new paint.

This Komatsu PC50UU has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This PC50UU is also a zero-tail swing machine with its 1750-mm upper body, 2000-mm overall width, and a tail swing radius of 990 mm (3'3"). This machine also comes with a quick valve shifter that switches between SAE (a.k.a. CAT, backhoe) and Japanese (a.k.a. Komatsu) control patterns.

Product Manuals

- Operation & Maintenance: Available for Customer Only

- Shop & Repair: Available for Customer Only

- Excavator Parts: Available for Customer Only

- Engine Parts: Available for Customer Only

General

- Make: Komatsu

- Model: PC50UU

- Serial #: 6350

- Track: Rubber (used)

- Year built: 1991

- Hour meter: 3,350

- Origin: Japan

- Operating weight: 5,185 Kg (11,433 lbs)

- Swing speed: 9.0 rpm

- Swing max slope angle: ? deg.

- Travel speed: 1.7 kmh (1.1 mph) & 3.2 kmh (2.0 mph)

- Gradeability: 30 deg.

Engine

- Make: Komatsu

- Serial #: 24786

- Fuel: Diesel

- Model: 3D95S-W-1

- No. of cylinders - bore x stroke: ?

- Piston displacement: 2.020 L (123.3 cu.in.)

- Firing order: ?

- Flywheel horsepower: 38.5 HP @ 2,500 RPM

- Max torque: ? Kgm @ ? rpm

- Max speed at no load (high idling) : 2,700 rpm

- Min speed at no load (low idling): 950 rpm

- Min fuel consumption: ? g/HP.h

- Alternator: ?

- Starting Motor: ?

- Battery: ?

OEM Working Range

Recorded Dimensions

- Overall Length: 5,950 mm (19'6")

- Overall Width: 2,000 mm (6'7")

- Overall Height: 2,420 mm (7'11")

- Backfill Blade Width: 2,000 mm (6'7")

- Backfill Blade Height: 400 mm (1'4")

- Bucket Width: 610 (2'0")

- Thumb Width: 340 (1'1")

- Track Width: 400 mm (1'4")

- Track Length: 2,390 (7'10")

- Track Standard: 400mm (width) x 72.5mm (pitch) x 70 (link)

​​​​​

- Boom Cylinder: 930 mm (3'1")

- Arm Cylinder: 750 mm (2'6")

- Bucket Cylinder: 585 mm (1'11")

- Thumb Cylinder: 290 mm (0'11")

OEM Dimensions
